portable digital transmitter 5KW TV transmitter Single-channel Analog Transmitter UHF 13-48

Specifications

cable tv transmitter

Applications

-------------------------------------------------------------------------------------------------------------

cable tv transmitter

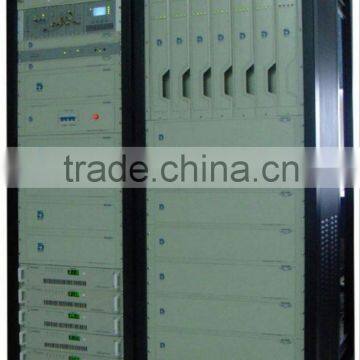

CZH518A-5KW Single-channel Analog TV Transmitter

-------------------------------------------------------------------------------------------------------------

Description:

-------------------------------------------------------------------------------------------------------------

Model : CZH518A-5kW
Product Name : 5KW TV Transmitter
Overview:

• This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.
• This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.
• It can prefabricate and control the half-power output, and it has remote control telemetry interface.
• The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
• The power amplifier and power supply are both used hot-plug devices.
• The power loss and standing wave of the one-time synthesis power combiner is small.
• The module of power amplifier display the working parameters in real-time.
• The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
• The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

Features

1. The whole machine is single-channel, image with audio together.
2. The management and monitoring are intelligent and on network, it has the external PC interface.
3. It has the technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.
4. Comprehensive protection measures can reduce the damage of equipments. This machine has protection about no video; VSWR is too large, overheating, over-stimulus, missing phase protection and lightning protection. The switch has protection about overvoltage, over current, under voltage, over temperature, short circuit and lightning protection.
5.  All power supplies are switching power supplies; high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.
6.  It adopts modular design concept.
7.  Hot-pluggable design: power amplifier and switching power are supporting the Hot-plug, it's easy to debug and maintenance; improve the reliability.
8. The fan is built-in the chassis, the transmitter has a compact structure and a beautiful shape.

Technical Specifications

-----------------------------------------------------------

1.Overall performances

2.Image performance

3.Sound performance

------------------------------------------------------------

---------------------------------------------------------------------------------------------
