01FSN fm transmitter 1mw FCC

Specifications

Applications

-------------------------------------------------------------------------------------------------------------

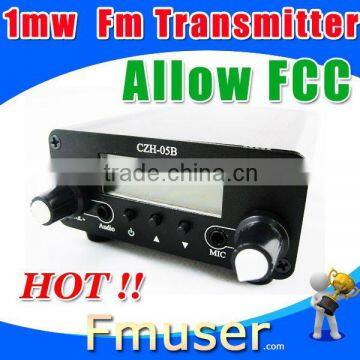

1mw Fmuser FCC CZH-05B FM transmitter black

-------------------------------------------------------------------------------------------------------------

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (76 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• User programmable frequency
• Easily choose your frequency LCD and buttons,No manual tuning required
• Japan Phase Lock Loop (PLL) Technology
• Works with standard FM receivers
• Coverage of 100 feet or more with portable FM receiver, 500 feet or more with car radio
• Hi-Fi Steroe audio quality
• Adjustable input level with over modulation indicator
• Stereo 1/4-F audio input connector
• Choice of GP antenna or telescopic antenna
• FCC part 15 and Industry Canada Bets-1, RSS-210 and RSS-123 approved
• Continuous work 7/24
• Temperature protect
• Standing Wave Protect
• 5 years warranty

Technical Specifications

-------------------------------------------------------------------------------------------------------------
• DC input:2.1mm
• input voltage:DC12V
• operating current:100mA
• Frequency:76~108MHz
• Modulation:WFM
• Frequency Step:0.1MHz
• Frequency stabilization method:PLL
• deviation:±75KHz
• RF Output:0.001W
• Output Impedance:50Ω
• Harmonic radiation:-60db
• Distortion:0.2%
• Pre-emphasis delay:50us
• Stereo Separation:40db
• Input level:-15dbV
• Input impedance:50KΩ
• SNR:65db

• Match the microphone:ECM mic

• Working temperature:0~55°C

• Color:Black

• Size:113*88*38mm

• Weight:0.27kg

Front and Back panel description

-------------------------------------------------------------------------------------------------------------

1. AUDIO INPUT LEVEL: controls the audio input level (Tunner)

2. AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

3. DC POWER SWITCH: turns the transmitter ON or OFF

4. FREQUENCY UP: transmitting frequency UP

5. FREQUENCY DOWN: transmitting frequency DOWN

6. MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

7. MIC INPUT LEVEL: controls the MIC input level (Tunner)

8. DC INPUT: Connect the DC adaptor (supplied) here (12V 1A,Core 2.1mm)

9. TRANSMITTING Connector:Connect the GP antenna OR telescopic antenna (50Ω BNC)

10. FREQUENCY DISPLAY: Displays the programmed transmitting frequency (76.0 – 108.0 MHz)

About Us

-------------------------------------------------------------------------------------------------------------

FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.

Gyms and fitness centers are the clients who use this fm transmitter

How many people would you say train with their MP3 player?

You can offer added value to these customers by enabling them to listen to the programs being broadcast on the TVs already installed in your gym. Simply install one of our transmitters, and your customers will be able to receive a perfect, crystal-clear signal transmitted directly to their mp3 player. An easy and effective way to increase your membership.

Products list

-------------------------------------------------------------------------------------------------------------

Permit licenses

-------------------------------------------------------------------------------------------------------------

In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.
