Home > Products > Magnetic level gauge > UHZ 517C15 Fluid Level Gauges for Anti Corrosion PTFE Lined Magnetic Level Gauge

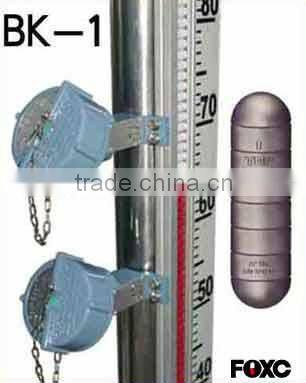

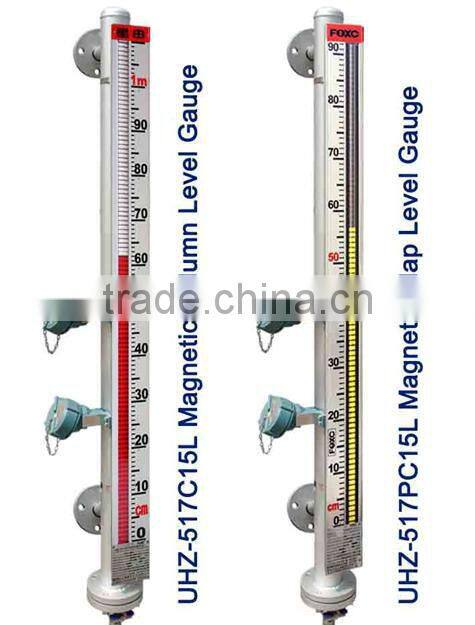

UHZ 517C15 Fluid Level Gauges for Anti Corrosion PTFE Lined Magnetic Level Gauge
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T Credit Card PayPal
You May Like
-
UHZ 517C19 Level Gauge Survey PPR Lined for Hcl Tank Water Depth Meter
-
UHZ 517C10 Diesel Level Sensor for Level Indicator Max 200 Centigrade 150lb
-
UHZ 517C13 Electronic Water Level Indicator With Transmitter Optional for Frost Proof Min -40 and -196 Centigrade 300lb
-
UHZ 517C12B Fuel Tank Level Water for Signal Level Meter With Transmitter Optional Max 450 Centigrade 400lb
-
UHZ-517B57 Digital Height Gauge for Anti-corrossive Type Magnetic Float Level Transmitter (interface) Max 120 Centigrade PN4.0
-
UHZ-517B54A Electronic Digital Level for Standard Type Fuel Level Meter -35~120 Centigrade PN4.0 300lb
Product Details
| Place of Origin | Shanghai, China | Brand Name | FOXC | |
| Model Number | UHZ 517C15 |
Product Description
Specifications
1. corrosion proof PTFE lined2. reliable quality and long life in service
3. without blind zone
Technique Parameter
Measure Range: | 300~6000 mm (center distance) or on request. |
Nominal Pressure: | PN 1.6 MPa Class 150LB ANSI / PN2.5 Class 300LB ANSI |
Working Pressure: | ≤1.875Mpa 225LB |
Working Temperature | -30~230°C |
Medium Density | 500~2000kg/m³ |
Chamber(bypass tube) | Φ76x3mm |
Process Connection | Factorty Standard: DN25 PN4.0MPa HG20592-97; 150LB , 300LB 1" ANSI B16.5; Optional std: 1/2"~ 2" ANSI B16.5; DN10-DN50 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635; DN10-DN50; DIN 2527; DN10-DN50 10A~50A JIS 20K FF RF; 1/2"~2" JPI 300LB RF |
Chamber/Flange/ Wetted Material | 304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti |
Magnetic Float | Its size depends on liquid density Material: Titanium, 316SS or 316L SS |
Optional Items |
|
