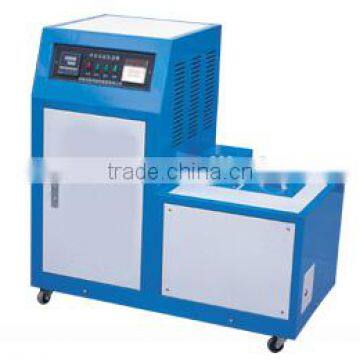

Low Temperature Chamber DWC-80

Specifications

                                                       Low Temperature Chamber

1. Main Function

DWC-80 cooling groove is meeting to GB/T 229-1994 Metal Charpy Gap Impact Test Method. The machine uses cascade compressor refrigeration technology, using thermal equilibrium theory and mixing cycle approach, it can make the specimen auto-cool and constant temperature. The machine operates easily and work high efficiency, is perfect cooling machine. Meanwhile, it can be used test low temperature.

2. Main technical specifications

Temperature range:+30°C ~-60°C(Room Temp ≤25°C)

Accuracy: <±0.5°C

Cooling rate : +30°C~0°C 2.0°C/min
               0°C~-20°C 1.5°C/min
             -20°C~-40°C 1.0°C/min
             -40°C~-60°C 0.7°C/min

Dimension: 900×510×940mm

Effective work space: 120×120×70mm

Specimen quantity for one time: >60

Number counter: 1S-99 minutes Resolution 1S

Cooling media: ethanol or other liquid

Power supply: 220~240V, 50HZ, 1.5KW

3,Warranty and After-sale service

1,The warranty of all our testing machine is one year

2,During this Warranty,it is free to replace the spare parts

3,Out of this warranty, it only charges the cost of the spare parts

4,All our testing machines enjoy a long after-sales service

Contact Person: kevin     Tel:008615168825790     Skype: kevin88030
