Home > Products > 2016 Top sell freeze dryer > TFDS20 Freeze Dryer Machine/Industrial Freeze Dryer/Lyophilizer

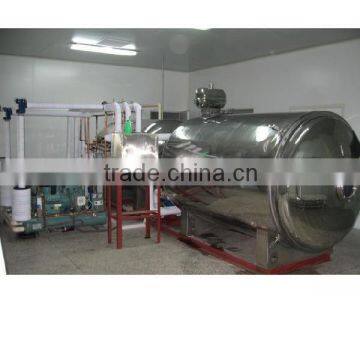

TFDS20 Freeze Dryer Machine/Industrial Freeze Dryer/Lyophilizer
- shanghai
- T/T
You May Like
-
Vacuum Dryer
-
200~400 KG Vegetable Dryer Machine/vegetable Drying Machine/freeze Dried Mushroom/freeze Dried Peas/freeze Dried Sweet Potato
-
5KG Vegetable Dryer Machine/freeze Dried Vegetable/mushroom Dryer/mushroom Dryer Machine
-
400KG Freeze Dry Machine/freeze Dryer China/vacuum Freeze Drying Equipment/pharmaceutical Products Quality Choice
-
550KG Freeze Dry Machine/freeze Dryer China/vacuum Freeze Drying Equipment Quality Choice
-
4000KG Food Dryer Machine/food Freeze Dryers Sale/freeze Dried Chicken/freeze Dried Cheese/freeze Dried Beef/freeze Dried Coffee
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | LYOMAC | Model Number | TFDS20 | |
| Type | Dryer | Voltage | 380-460V | |
| Power(W) | 30KW | Weight | 20000Kg | |
| Dimension(L*W*H) | 4000X3000X2600mm | Certification | CE ISO | |
| Warranty | 12 Months | After-sales Service Provided | Overseas service center available |
Product Description
The food freeze dryer is best choice for freeze drying food, nutrient material, pet food etc. We are one of the largest manufacturer in China and have rich experience to provide all process and turnkey project, due to our 20 years’ experience in this field, we have installed more than two hundred projects over than 15 countries, like Mexico, USA, and Australia etc.
Welcome contact us and get more information from us!
Working Princple of Freeze Drying Machine
Under vacuum condition, material is freeze dried via principle of sublimation. The moisture in the pre-frozen material is directly sublimed from solid state (ice) to gaseous state (vapor), without melting. Freeze dried products are formed as sponginess, no shrinkage, rehydration excellent, very little water containing. The freeze dried product in sealed packaging can be stored and transported at room temperature for a long time.
How to process the freeze dried food?
1. Best dried quality for fruits and vegetables
2. Complete fabric with stainless steel
3. Fully automatic running system, operated by computer;
4. We supply complete system, including freezer, freeze dryer, material trays.
5. More experience in more than 15 countries, like New Zealand, USA, Poland. We installed more than 200 sets in past 20 years.
Capability parameters | TFDS20 | TFDS35 | TFDS50 | TFDS70 | TFDS100 |
Drying chamber quantity | 1 | 1 | 1 | 1 | 1 |
Total drying area(m2) | 20.6 | 34.9 | 52.3 | 69.8 | 104.7 |
Drying Chamber operation vacuum degree (Pa) | 13-133 | ||||
Cold trap working temperature(°C) | -30~-45 | ||||
Cold trap form | Internal design, same vessel with heating plate | ||||
Heating plate operation temperature(°C) | Room temperature ~ 120 | ||||
Heating energy | steam heating , by radiation | ||||
The max. ability of cold trap(KG/cabinet, shift) | 200 | 350 | 500 | 700 | 1,000 |
Time of evacuation to 1 Torr (Minutes) | <20Min | ||||
Compressor Brand (optional) | Bitzer, Fushen, Hitachi | ||||
Vacuum pump(optional) | leybold,/Zhejiang | ||||
Vacuum chamber | Carbon steel/Stainless steel | ||||
