Home > Products > Pressure Measurements > High accuracy BBZ vacuum pressure transmitter with best price

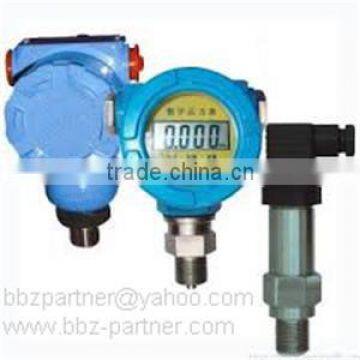

High accuracy BBZ vacuum pressure transmitter with best price

FOB Price

US$ 15 - 589 / Piece

1 Piece(Min. Order)

Port Qingdao Lianyungang Tianjin Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	BBZ
Model Number	BBZ

Product Description

Brief Introduction

High accuracy BBZ vacuum pressure transmitter with best price is made integrated structure by using high quality thick-film ceramic sensors and special amplified circuits. The output ofthe product is configured to 4~20mA current loop, or 0~5Vdc, or 0~10Vdc, or 1~5Vdc voltage signals. The pressure diaphragm of this transmitter is made from ceramic material, while its wetted parts is made from stainless steel.

Features

Many measuring pressure range

Wide application scope and long service life

Automatic testing and laser trimming compensating zero & sensitivity

High accuracy long-term stability

Good ability on anti corrosion & anti-impact.

Product Parameter

pressure medium	gas or liquid compatible with ceramic and stainless steel
pressure ranges	0~1bar...200bar
overload pressure	150%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V
accuracy	0.25%FS, 0.5%FS(standard)
load resistance	R =(U-12V)/0.02A(4~20mA current output) U—loop voltage (V)
long-term stability	<0.2%FS/year
supply voltage	12~36VDC
compensated temperature range	0~70℃
operating temperature range	-30~95℃
storage temperature range	-40~100℃
temperature coefficient of zero	0.3%FS/10℃
temperature coefficient of span	0.3%FS/10℃
insulation resistance	100MΩ@50VDC
process connection	G1/4 or others
electrical connection	hirschmann connector or others
material of wetted part	1Cr18Ni9Ti
material of pressure membrane	ceramic
sealing	n-Butyronitrile or fluoro-rubber sealing ring
material of housing	1Cr18Ni9Ti

Applications

The compensated temperature range ofHigh accuracy BBZ vacuum pressure transmitter with best price is 1Cr18Ni9Ti 0~70 is designed for use in most industrial application, and this product is suitable for measurement of most pressure medium (including corrosive medium) directly.
