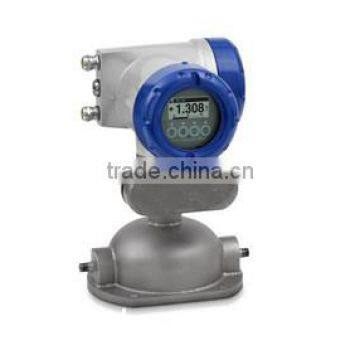

BBZ-OPTIMASS 3000 mass flowmeter for low flow
- Tianjin Lianyungang Qingdao Shanghai
- T/T L/C D/P D/A
You May Like
-
BBZ- OPTIMASS 6000 mass flowmeter for extended temperature applications
-
BBZ- OPTIMASS 7000 wastewater mass flowmeter
-
BBZ- coriolis Mass Flowmeters with MFC 400 modular converter The high performance signal converter for all applications
-
BBZ - DBE 4~20mA current Insertion type electromagnetic flowmeter
-
BBZ plug- in 4~20mA all stainless steel magnetic mbus flow meter
-
BBZ 4-20mA current signal output RS485 conductivity fluid flowmeter/ suitable for conductivity fluid
Product Details
| Place of Origin | Henan, China | Brand Name | BBZ | |
| Model Number | BBZ-OPTIMASS 3000 |
Product Description
Brief Introduction:
The BBZ-OPTIMASS 3000 mass flowmeter for low flow is the cost effective solution for accurate measurement in a variety of applications, where there is a low process flow, and it will provide accurate measurement of mass, volume, density and concentration.
Features:
Z-shaped measuring tube
Easily drained and easy to clean
Optional heating jacket
Simple installation and start-up
Modular electronics concept - electronics and sensor are easy to replace
Data redundancy - accurate plug & play replacement of electronics
Specifications:
Measuring principle | Coriolis mass flow |
Application range | Mass flow and density measurement of fluids, gases |
Accuracy | Liquid: ±0.1% Gas: ±0.5% |
Repeatability | ≥0.05% |
Zero stability | 0.0057% |
Operating pressure | 1 barg/ 14.5 psig |
Ambient temperature | 0~60°C (-40~140°F) |
Process temperature | -40~150°C (-40~302°F) |
Measuring tube | Stainless Steel 316L (1.4435) |
Outer casing | PED / CRN |
Inlet runs | None required |
Outlet runs | None required |
Sensor electronics housing | Stainless Steel 316L (1.4409) |
Junction box (remote version) | Die cast Aluminium (polyurethane coating) |
Optional Stainless Steel 316 (1.4401) |
Applications:
Fragrance dispensing and high precision coatings in the pharmaceutical industry
CO2 injection and dosing in the food and beverage industry
Natural gas and propane odorisation
Engine test beds in the automotive industry
Application Industries:
Industries
Water and Wastewater
Chemicals
Power plants
Food and Beverage
Machinery
Oil and Gas
Petrochemical
Pulp and Paper
Pharmaceutical
Marine
