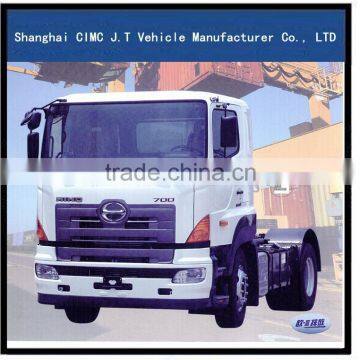

Hino Tractor Truck, Tow Tractor, Towing Vehicle
US$ 62,000 - 67,000
/ Unit
1 Unit(Min. Order)
- MAIN CHINA PORT
- T/T
You May Like
Product Details
| Condition | New | Horsepower | 351 - 450hp | |
| Drive Wheel | 4x2 | Transmission Type | Manual | |
| Emission Standard | Euro 4 | |||
| Fuel Type | Diesel | Brand Name | HINO | |
| Size | 6000X2500X3900MM | Gross Vehicle Weight | 18000 |
Product Description
ModelYC4180SH2PE/HINO SH2PEUA-ASW
EngineMake: HINO
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model: P11C-UJ , Euro III or Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1483 Nm at 1100-1300r/min
Number of cylinder: 6
Displacement: 10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan
Transmission:FULLER RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1 12.99 (R)
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleHINO, Steering with doubleT-cross section beam
Rear AxleHINO Pressed axle housing, Pressed axle housing, central single reduction
Ratio:3.727
Aluminium fuel tank
Fifth wheel
BrakesService brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake (WEVB)
Trailer Brake
Fifth wheelRated loading capacity at fifth wheel: 50,000kg
Wheels & TyresTire: 11.00R20, all steel radial tyre
Overall length6000
Overall width2500
Overall height with roof air spoiler3900
