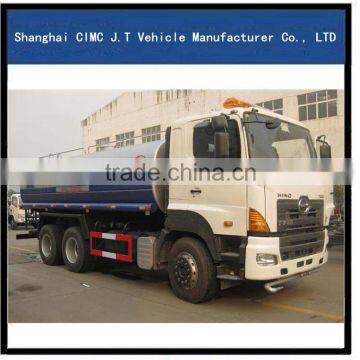

Hino Water/Fuel Tank Truck

Model SS2PKUA-LSW/YC5250SS2PK  Driving type: 6*4 left hand driving

Engine Make: HINO MADE IN CHINA
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model: P11C-UJ , Euro III emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1460 Nm
Number of cylinder: 6
Displacement: 10.52 L


Transmission Fuller RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42   8.26  6.08  4.53   3.36  2.47   1.81   1.35  1   12.99 (R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle Steering with doubleT-cross section beam

Rear Axle HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
Ratio:5.285

Wheels & Tyres Tire: 11.00R20, all steel radial tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats


Overall length 8500
Overall width 2500
Overall height  3700

Front axle loading capacity 8000
Rear axle loading capacity 26000

Parameter of the water tank Water tank material Carbon steel Q235
Volume m³ 19 M3 (5000 gallons water, 19,000 L)
Tank thickness  5mm body,  head: 6mm
With rear working platform with water cannon (range + 28m) Yes
With water pump (suction 3m +) connect to the PTO on the gear box Yes
Front / Back, side water spray Yes
High pressure water cannon Yes
Water suction pipe 3 meters
Automatic water suction system Yes
Water tank inside Preservative treatment Yes
Performance  Maximum driving speed  (km/h) 90
Maximum gradeability (%) 34
Minimum ground clearance (mm) 298
Fuel consumption (l/100 km) 32
