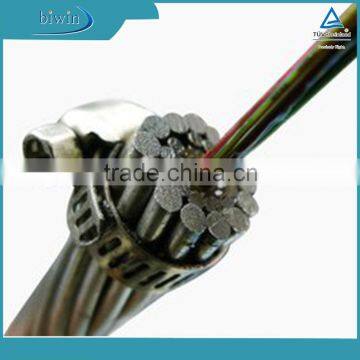

24 Cores Optical Fiber Composite Overhead Ground Wire / OPGW Cable

1.Introduction:

• OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. It’s working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.

• The OPGW consist of stainless steel tube optical unit, aluminium cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customer’s requirements.

 2.Features:

• Stainless-steel optical fiber unit of central loose tube or layer stranding structure

• Aluminium alloy wire and aluminium clad steel wire armored

• Coated with anticorrosive grease between layers

• OPGW can support heavy load and long span installation

• OPGW can meet the ground wire‘s requirement of mechanical and electric by adjusting proportion of steel

   and aluminium.

• Easy to produce the similar specification of exist ground wire can replace the exist ground wire

 3.Application properties:

•Adapt to replace the aged ground wire and new structure of high voltage ground wire.

• Lighting protection and conduct the short circuit current.

• Optical fiber communication ability

 4.Specification of main product:

5.Typical Structure:

6.Assembly line and equipment, and field working picture showing:

Standard delivery lengths are 2km, 4km, 6km, 8km with a tolerance of -1%~+3%.

2. Packing as follow:

1. We can provide free samples

2. OEM welcome

Sichuan Biwin Imp-Exp Trade Co., Ltd. is a high-tech enterprise, specializing in import and export goods, R&D, producing and distributing optical fiber cables, electric optical fiber cable (ADSS and OPGW), PMMA plastic optical fiber (cable), supplementary facilities, system integration as well as providing technical service for customer.

At present, the company has yearly production capacity of 2,000,000 core kilometers of communication optical fiber cables and 500,000 core kilometers of power optical fiber cable. The company is one of the top 5 manufacturers of optical fiber cable in China and the key high-tech company authorized by national ministry of science and technology. our market is UK,USA, UAE, Thailand, Vietnam, Zambia, Colombia, Nepal, Philippine, Bulgaria, and so on.

2. We provide FREE samples.

3. Where are we?
