Home > Products > Generator Set Series > Yanan Water-cooled Open Type Chinese Engine Diesel Generator Set
Yanan Water-cooled Open Type Chinese Engine Diesel Generator Set
- FUZHOU
- T/T D/P D/A
You May Like
-
On Stock!!Yanan Water-cooled Soundproof Chinese Engine Diesel Generator
-
Mobile Generator/generator Set/ Genset
-
On Stock! Yanan Soundproof Chinese Engine Power Generator Set
-
Yanan Chinese Engine Soundproof Diesel Generator Set
-
Yanan Soundproof Chinese Engine Diesel Genset for Sale
-
Yanan Soundproof Chinese Engine Diesel Generator Set on Stock
Product Details
| Place of Origin | Fujian, China | Brand Name | Yanna | |
| Model Number | GF-12 | Output Type | AC Three Phase | |
| Speed | 1500RPM&1800RPM | Frequency | 50hz&60hz | |
| Rated Power | 8kva-2200kva | Rated Voltage | 110v220v380v400v440v | |
| Rated Current | 8A-3650A |
Product Description
Specifications
power by chinese engine ,from10kva to 1000KVA
Certificate:ISO,CE CCS UL
LOW Fuel consumption
One of the largest scales and most comprehensive manufacturer for alternator, generators, electric motors and water pumps in China.
1. Product Overview
1) Brand-new engine, w/ start motor.
2) Brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator, Genset with battery charger of main supply.
5) Circuit Breaker, Exhaust Silencer
6) Copper Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable
8) Skid-mounted bottom 8 hours fuel tank.
9) External recessed emergency stop button for extra safety
10) Optional: Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system
2. Engine Detail
| Diesel engine model | 480D |
Frequency | 50Hz/60Hz |
| phase | 3 |
| voltage | 400v 440v |
| speed | 1500rpm/1800rpm |
| Engine Characters | Water-cooled in line,vertical,4-stroke,direct injestion |
| bore(mm)*stroke(mm) | 93*102 |
| Exhaust Temperature | 500°C |
| cooling System Volume | 15Kpa |
| Rating Fuel Consumption | 6.6L/h |

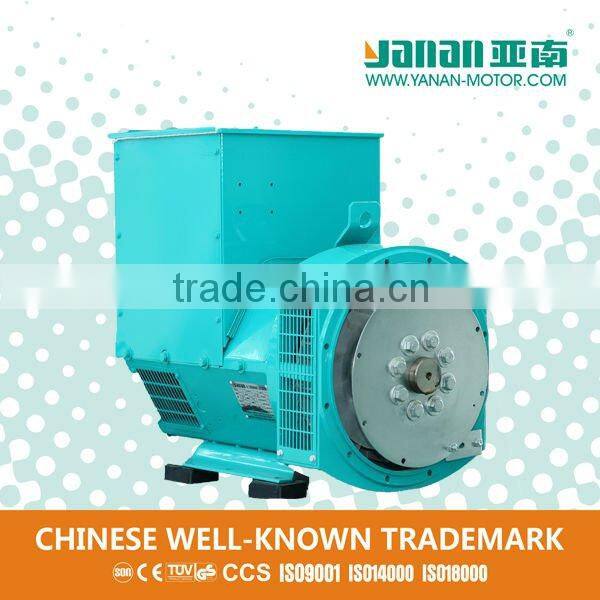

Alternator Detail
| Model | SLG164C |
| Continuous output(kw) | 12.8 |
| Soundproof type dimensions | 2150*900*1050 |
| Fuel tank capacity | 120 |

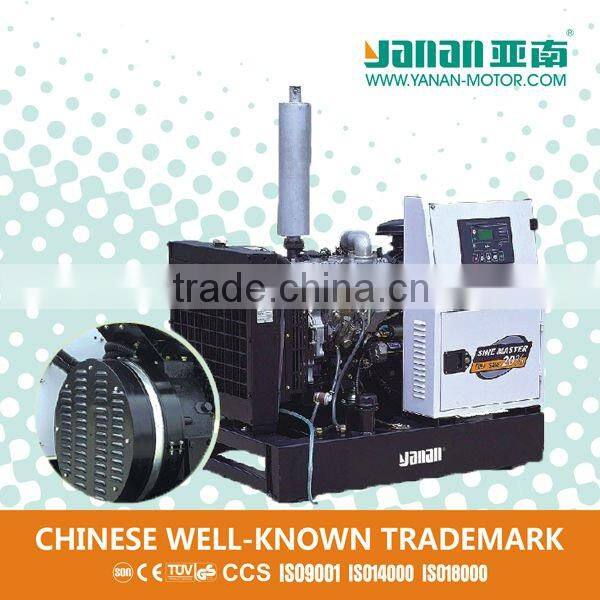

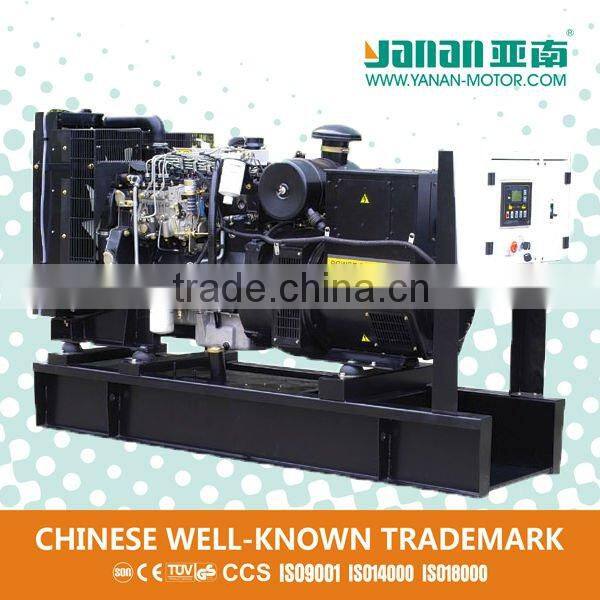

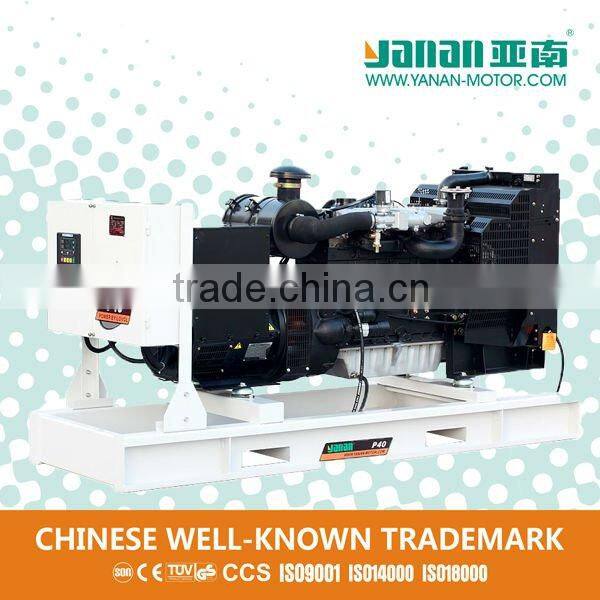

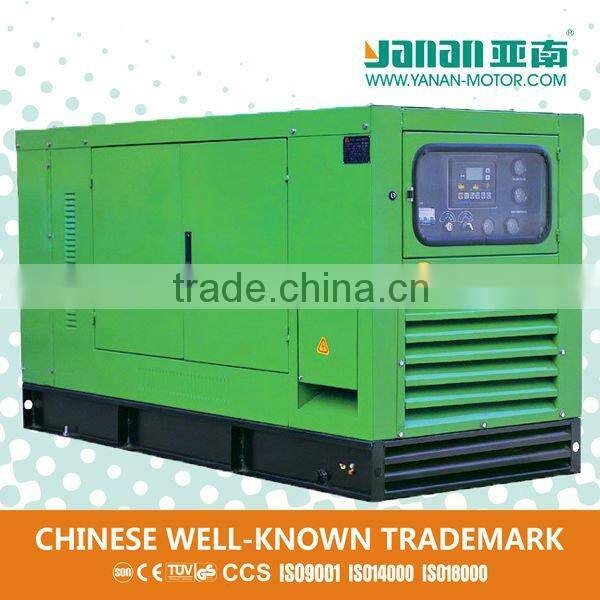

Generator set View

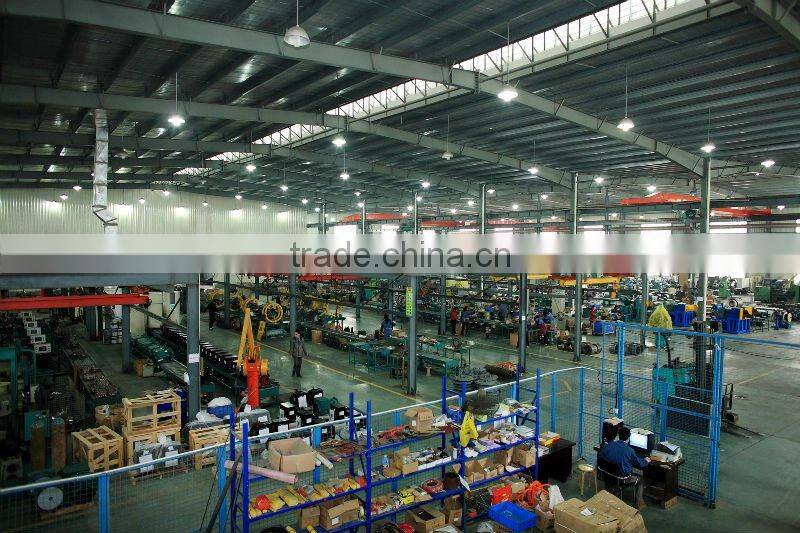

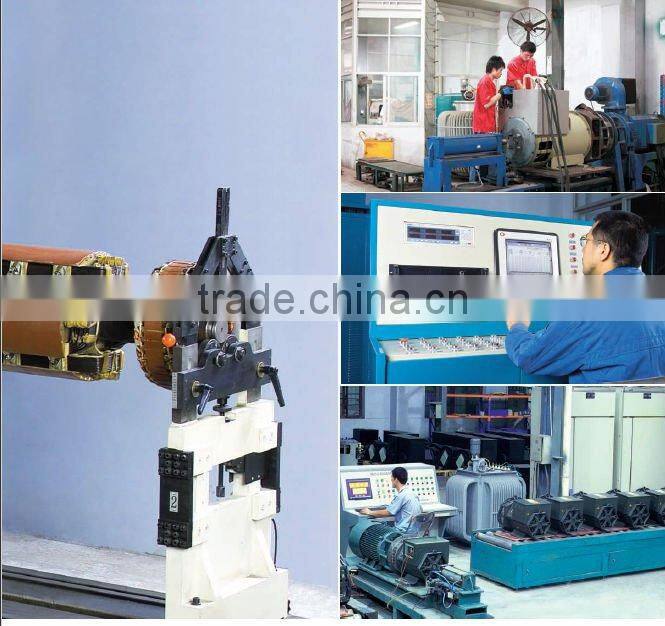

Factory View
Certificate
Contact Us
- Fujian Fuan Mindong Yanan Electric Machine Co., Ltd.
- Contact nameOwen Lu Chat Now
- Phone86-593-2589566
- Address14 Jinglin Road, Yangquan, Fu'an City, Fujian Province. China, Ningde, Fujian
