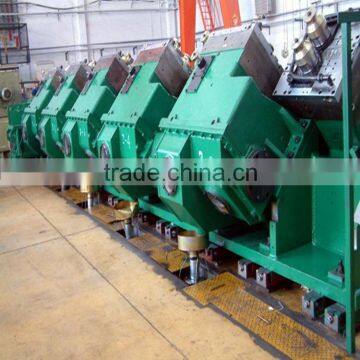

intermediate mill/Medium mill for steel production line

Technical project brief introduction

-- Production line with annual capacity: According to your demand,100,000.00MT at least, automatic continuous rolling mill applied.

-- Billet size: 150*150*12000mm

-- Product specifications: Ø8-Ø32mm, 12000mm length rebar

-- Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.

-- Rolling speed: 12-18meters/second.

1. Product

Material: carbon steel, structure steel, low alloy steel

Product specification: bar/rebar/wire rod Ø 6 to Ø 32 mm

2. Raw material

The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.

3. Process layout

Roughing mill stands Ø550 X 6 (H/V) No.1 to No.6 mill stands -- Intermediate mill stands Ø420 X 6 (H/V) No.7 to No. 12 mill stands -- Finishing mill stands Ø320 X 6 (H/V) No.13 to No.18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No.14, 16 and 18 are Ø320 H/V interchangeable rolling mill stands

4. Process flow

Company brief introduction

Machinery Manufacturering and Supply

Q: Are you a manufacturer or trading company?

A: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a  ISO 9001:2008certified manufacturer  engaged for the last 20 Years in  Manufacturing and Supply of Complete Steel Rolling Mills in the Country as well as export in   Nigeria, Thailand, Indonesia, Vietnam , Myanmar and  Middle East countries,  and also in certain African Countries.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Xi’an City, Shaanxi Province,China.

All our clients, from home or abroad, are warmly welcome to visit us!

Q: How does your factory do regarding quality control?

A: Quality is priority.

Our enterprise owns perfect quality guarantee system and an excellent quality management team, in 2001, our factory passed the ISO9001 quality system certificate.

Weikeduo’s quality policy:

Leading technology   Quality-oriented

Customers first       Continuous Improvement

Q: Why choose us?

A: Xian Weikeduo Electric & Mechanical Equipments Co., Ltd is the high speed rolling mill leader, with the experienced staff team and own technique patents;

Our company has been certified by ISO9001:2008 and SGS;

Our company registered the brand name "Hangji" in 2008, since then, HangJi brand rolling mills have been exported to Nigeria, Thailand, Indonesia, Vietnam , Myanmar and so on .

We are willing to cooperate with friends in the industry all over the world !

Please tell us some details as follows, so we can suggest you the suitable machine and the layout.

• What's the raw material and it's size? (width,thickness and length )
• What's the finished product and it's size?
• What's the annual capacity of your plan?

Please let us know if here any question.

Looking forward to hearing from you.
