Product Details
| Place of Origin | Zhejiang, China | Brand Name | JM | |
| Model Number | UK-16B | Number of Contacts | 1 - 10 | |
| Conductor Size | 1- 5 AWG | Type | Screw |
Product Description
UK series combined terminal adopts frame type screw connection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm2 connection conductor, it is also suitable for connecting the circle copper conductor of tube terminal which is not specially processed or pressure welding.

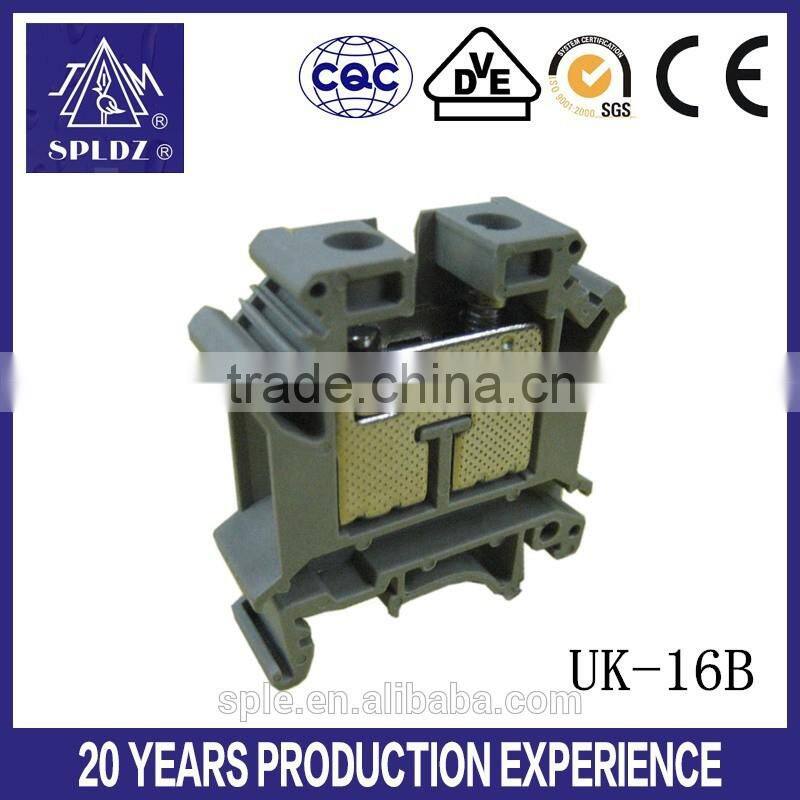

Din rail screw terminal block conenctors UK-16B
| Model UK-5N | |||
| Standard | UL   | IEC   | |
| Rated voltage | 600V   | 800V  | |
| Rated current | 101A  | ||
| Diameter | 12-1AWG   | 0.2-16mm 2  | |
| Thickness / width / Height | 12.2/42.5/47mm   | ||
| Rated impulse voltage / pollution level | 8kV/3   | ||
| Strip length | 7 mm   | ||
| Screws Specifications / torque | M6/0.6-0.8Nm   | ||
| Plug gauge | A3   | ||
| Insulation material / flame retardant grade | PA/V-0  | ||
Other Similar UK din rail wire terminal block;
Yueqing SaoPaulo Co.,ltd specialized production and sales UK series ,SAK (JXB) series,IN series of terminal blocks, TB series of terminal blocks, TC series large current terminals, TD series connection terminal, X3 plastic terminal block etc all kinds of electrical accessories. High quality, low price! Welcome the customer calls consultations, negotiations business, we are looking forward to cooperating with you!
1.How can I contact you?
You can contact us by Trademanager cnsple and send email to Jimmy @sple.cn,We will quote within 12 hours after we get your inquiry.
2 Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.If simple sample , we will not charge cost; If OEM/ODM samples, we will charge for the sample cost.
3. What’s your payment term?
We usually accept T/T before ship as the main payment term, and other payment can also be negotiated.
4.Do you have the products in stock?
No, all products will be newly produced according to your order.
5.What about the lead time for mass production?
It's about 10-30 days after the deposit.
6.What is your main products?
Our main products including power switch,rocker switch,tact switch,push switch,rca jack connector,terminal block
7.Do you received OEM/ODM?
YES.We have more than 10years OEM experience.
8.If you can't find the products from our web, pls send us an inquiry to us,even if we can't make ,we know china market very well ,and can help you to find the same product with good quality and low price.
