Black Nylon Flat Abrasive Conveyor Rubber Belt
- ShangHai
- T/T L/C D/P D/A Credit Card
You May Like
-
Mining used nylon Rubber Conveyor Belt for sale
-
China Gold Supplier offers Nylon conveyor belt
-
Rubber Conveyor Belt offered by HuaShen
-
Flame-resistant Conveyor Belt of Textile Constuction for General Usage ,Supplier in China
-
High Quality Industrial Rubber Nylon Canvas for Conveyor Belt
-
HuaShen offers Nylon conveyor belt with Good Strength and High Abrasion& Impact resistace , used in Coal Mine,
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HuaShen | |
| Model Number | NN100/125/150/200/250/300/350 |
Product Description
Black Nylon Flat Abrasive Conveyor Rubber Belt
Characteristic
The belt has good performance under the condition of middle/long distance, heavy loading capacity and high speed
conveying, which has prefect flexing capacity, heat resistant and low elongation.it is mainly used in long distance
and heavy-load conveying condition.
Specifications
The carcass is NN fabric(both Warp and Weft are Nylon fabric).

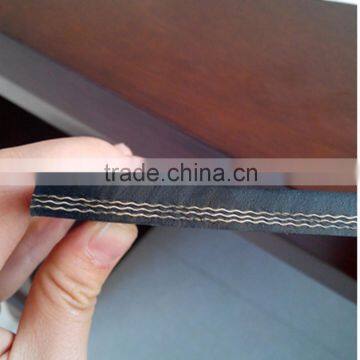

Construction
- NN Fabric Carcass (warp is Nylon and weft is Nylon)
- Special rubber layer with good fabric adhesion properties (skimmed layer)
- Cover rubber (special quality requirement)
Advantages
- Excellent heat resistant
- High modulus
- Impact resistant
- Low elongation
- Good flexibility and good troughability
Application
- Quarry, Gravel, Sand
- Cement, Concrete Plants
- Coal, Mining
- Steel Industry, Heating and Power Station, Garbage Incineration Plants
- Recycling, Compost Industry,
- Mineral Processing Plants
- Road Construction Machinery
- Wood Working, etc
Service For You
- Free samples
- Strong technical force
- Advanced production equipment
- Strict quality testing
- Professional before-sales and after-sales service team
- Timely delivery
Fabric type | Fabric stucture | Fabric specs | Ply thickness (mm/p) | (N/mm) Strength series |
| Cover thickness | Width mm | ||||||
Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
Nylon(NN)
|
Nylon(N)
| Nylon(N ) | NN-100 | 0.70 | 200 | 300 | 400 | 500 | 600 | 1.5~8 | 1.5~4.5 | 400~250 |
≤300
|
NN-125 | 0.75 | 250 | 375 | 500 | 625 | 750 | |||||||
NN-150 | 0.80 | 300 | 450 | 600 | 750 | 900 | 500~2500 | ||||||
NN-200 | 0.90 | 400 | 600 | 800 | 1000 | 1200 | |||||||
NN-250 | 1.10 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
NN-300 | 1.25 | __ | 900 | 1200 | 1500 | 1800 | 800~2500 | ||||||
NN-350 | 1.35 | __ | 1050 | 1400 | 1750 | 2100 | |||||||
Adhesion and elongation of the belt
Belt carcass | Adhesive strength | Elongation | |||
Between plies N/mm | N/mm Between ruber and carcass | Longitudinal elongation at break %≥ | Longitudinal elongation at reference load %≤ | ||
Rubber thickness: 0.8~1.5mm | Rubber thickness >1.5mm | ||||
Nylon canvas | ≥4.50 | ≤3.20 | ≥3.50 | 10 | 4.0 |
Cover properties of the belts
Cover grade | Tensile strength≥ | Elongation≥ | Abrasion≤ | Change rate of tensile strength and elongation after aging | |
Mpa | Kgf/cm² | % | mm³ | % | |
High Laceration Condition (H) | 24 | 240 | 450 | 120 | -25~+25 |
High Abrasion Condition (D) | 18 | 400 | 400 | 100 | -25~+25 |
Ordinary Condition(L) | 15 | 150 | 350 | 200 | -25~+25 |
Successful Story:
| Application in Black Metal Industry | ||
| NO. | Clients | Products in Application |
| 1 | Wuhan Iron & Steel Group Corp. | Steel Cord Belt, Heat Resistant Belt, NN Belt, EP Belt, Ordinary Belt |
| 2 | Jiangsu Shagang Group Co., Ltd. | High Angle Sidewall Belt, Steel Cord Belt, NN Belt,Ordinary Belt, EP Belt, Heat Resistant Belt |
| 3 | Maanshan Iron & Steel Co. Ltd. | EP Belt, NN Belt |
| 4 | Panzhihua Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, EP Belt |
| 5 | Jiangyin XingCheng Special Steel Works Co., Ltd | High Angle Sidewall Belt, NN Belt, Ordinary Belt, Heat Resistant Belt, EP Belt |
| 6 | Lianfeng Iron & Steel Co., Ltd. | EP Belt, NN Belt, Ordinary Belt, High Angle Sidewall Belt, Steel Cord Belt |
| 7 | Lihuai Iron & Steel Co., Ltd. | High Angle Sidewall Belt, EP Belt, Ordinary Belt |
| 8 | Tieben Iron & Steel Co., Ltd. | High Angle Sidewall Belt, EP Belt, Ordinary Belt, Heat Resistant Belt |
| 9 | Nanjing Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, EP Belt |
| 10 | Meishan Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, Rubber Lining Board |
| 11 | Hangzhou Iron & Steel Co., Ltd. | NN Belt, Ordinary Belt, Heat Resistant Belt |
| 12 | Suzhou Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt |
| 13 | Anxi Iron-smelting Factory | Heat Resistant Belt, Ordinary Belt |
| 14 | Anshan Coking & Refractory Institute | NN Belt, Ordinary Belt, EP Belt |
| 15 | Anshan Steel Design Institute | NN Belt, Ordinary Belt, EP Belt |
| 16 | Ningbo Jianlong Iron & Steel Co., Ltd. | NN Belt, Ordinary Belt, EP Belt |
| Application in Nonferrous Metal, Power, Machinery, Cement Industry | ||
| NO. | Clients | Products in Application |
| 1 | Huayuan Power Plant | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 2 | Junma Power Plant | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 3 | Guohua Taicang Power Co., Ltd. | EP Belt, Ordinary Belt |
| 4 | Jiangsu Huaiyin Huaneng Power Co., Ltd. | EP Belt, Ordinary Belt |
| 5 | Henan Zhoukou Longda Power Co., Ltd. | Steel Cord Belt, EP Belt, Flame Resistant Belt |
| 6 | Beijing Sanjili Power Group Co., Ltd. Zhangjiagang Branch | EP Belt, NN Belt |
| 7 | Jiangxi Dexing Copper Mine | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 8 | Sichuan Lala Copper Mine | EP Belt, Ordinary Belt |
| 9 | Sichuan Huili Zinc Mine | EP Belt, Ordinary Belt |
| 10 | Heilongjiang Jixi Black Lead Mine | Sidewall Belt, EP Belt,
Flame Resistant Belt |
| 11 | Pingxiang Conveyor Machinery Factory | NN Belt, Ordinary Belt |
| 12 | Hexing Conveyor Machinery Factory | EP Belt, Ordinary Belt |
| 13 | Yichun Conveyor Machinery Factory | NN Belt, Ordinary Belt |
| 14 | YongAn Cement Factory Ordinary Belt | Ordinary Belt |
| 15 | Jiangyin No.2 Cement Factory | Heat Resistant Belt, Ordinary Belt, Sidewall Belt |
| 16 | Hangzhou Glass Factory | Ordinary Belt, Sidewall Belt |
We offer EP/Nylon/Cotton/Steel mesh belt with heat/cold/high temperature/burn/
chemical/oil resistant properties and our rubber belts are widely used in mining/
cements/metallurgy /ports industries.Any needs,please contact us.
