Home > Products > Card Dispensers > Smart Card Collectors & Dispensers Issuing Machine MT166 for Magnetic IC RFID Card/ Parking Ticket

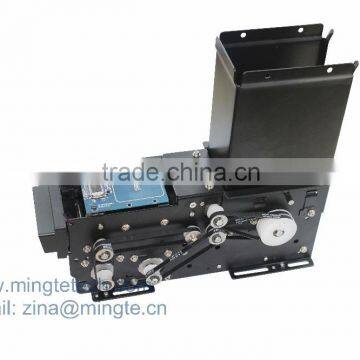

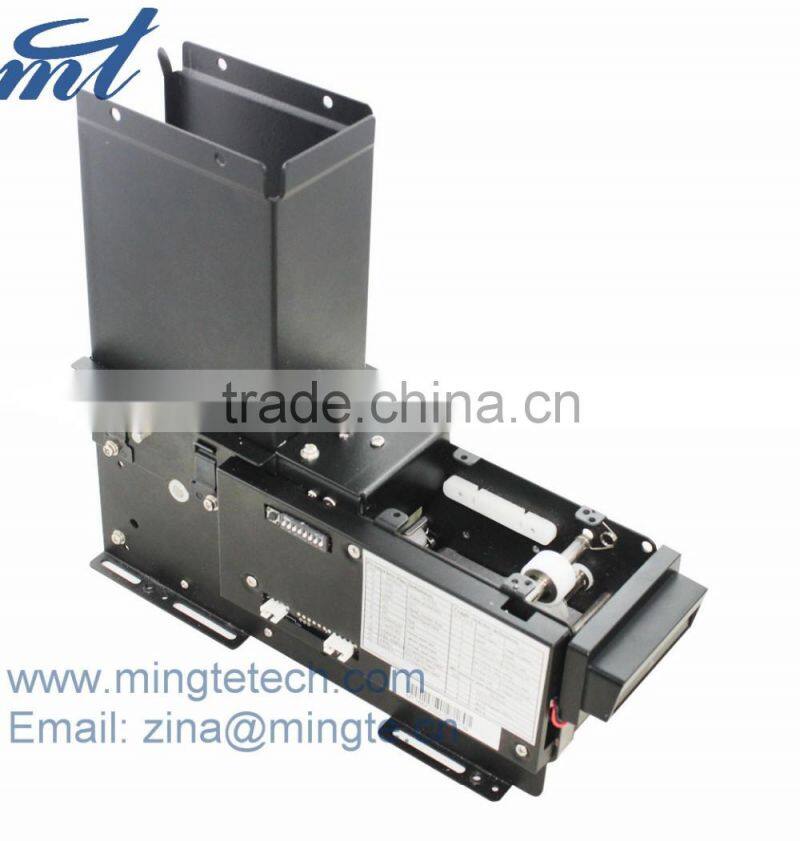

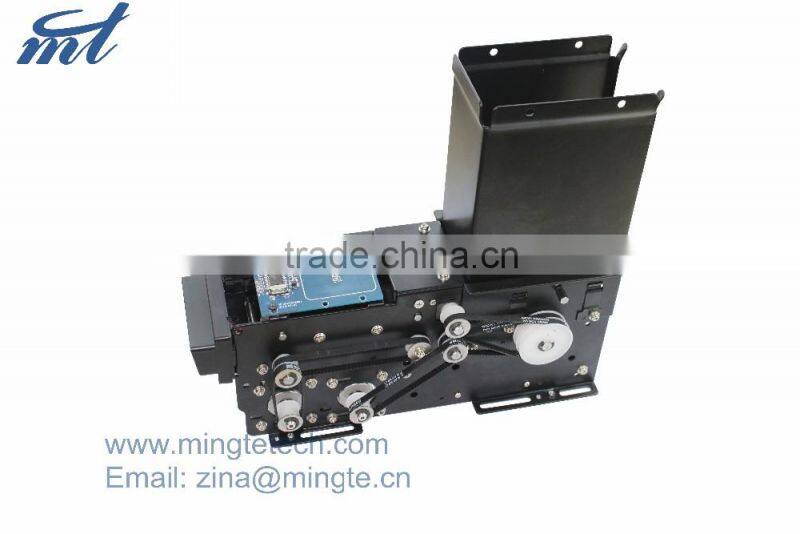

Smart Card Collectors & Dispensers Issuing Machine MT166 for Magnetic IC RFID Card/ Parking Ticket
- Shen zhen/Guang zhou/Hong kong
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | MT | |
| Model Number | MT166 |
Product Description
Features
1:Compact, high reliability and durability
2:Support magnetic card (ISO7810 & ISO7811)-optional
3:Support contact IC card (ISO7816)-optional
4:Support contactless IC card (ISO14443 TYPE A & B)-optional
5:Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B) -optional
6:Customized, with 2 stepper motors
7:Designed with shutter, dust and water proof
8:Adjustable card thickness & dispensing speed

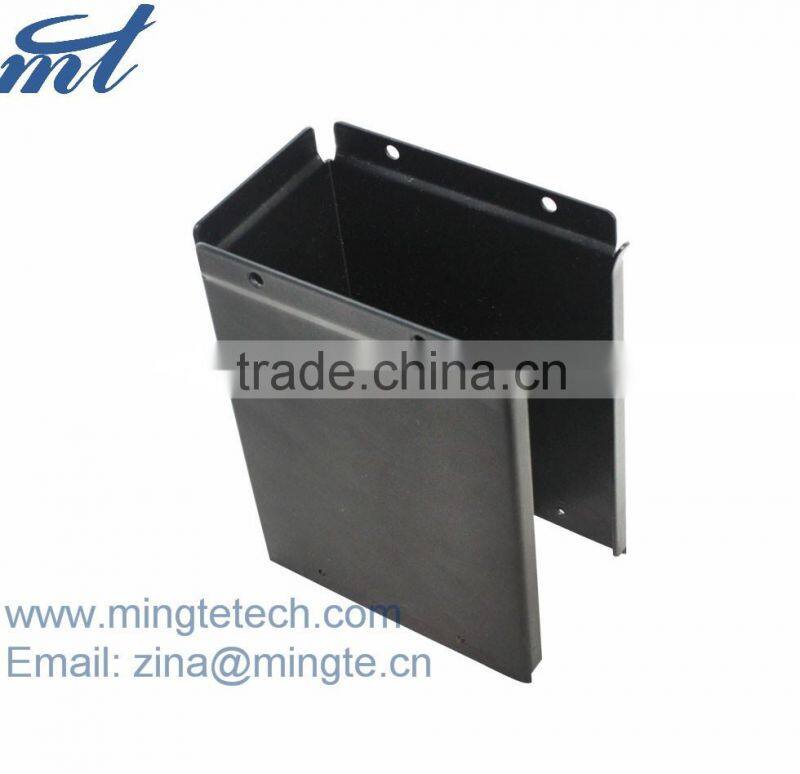

9:Extension stackable cards hopper capacity: 180pcs (card thickness: 0.8mm)
10:With error card recycling and card-low indication
11:With multi bezel (Optional)
12:Various interface and custom design
Applications
1:ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
2:ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Specifications(R: Read only, R/W: Read & Write)
CATEGORY | Card Collectors&Dispensers | ||
CARD TYPE | Magnetic Cards (optional) Contact IC Cards (optional) Contactless IC Cards (optional) | ||
CARD SPECIFICATIONS | Size: 54x86mm Thickness: 0.3-2.0mm | ||
MAGNETIC CARD(Optional) | ISO/IEC 7810/1811 | Track 1 | R |
Track 2 | R | ||
Track 3 | R | ||
IC CARD(Optional) | ISO/IEC 7816 | R/W | |
PSAM/ESAM | |||
EMV | Level 1 Compliant | ||
CONTACTLESS CARD(Optional) | ISO14443 Type A & B & Mifare | R/W | |
CARD DISPENSING SPEED | >1pcs/s | ||
CARD RECYCLING HOPPER CAPACITY | 25pcs | ||
CARD HOPPER CAPACITY | 180pcs | ||
LIFETIME | >2000000 Cycles | ||
INTERFACE | RS-232/I/O TTL | ||
POWER SUPPLY | DC24V ± 5% | ||
CURRENT | Max Current: 2A(24V) | ||
WORKING TEMPERATURE | -40-+65°C | ||
WEIGHT | Approx 2120g | ||
REMARK | With shutter & multi bezel(optional) | ||
Established in 2005, Shenzhen Mingte Tech Co., Ltd. is a leading and professional worldwide provider for Smart Card Readers, Card Collectors & Dispensers and Banknote Validators. Specializing in design, development, sales and manufacturing of Smart Card Readers, Card Collectors & Dispensers and Banknote Validators, MINGTE provides OEM and complete custom payment solution for every imaginable applications, including ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Fuel Dispensers, Gaming Machines, Electric Vehicle Charging Piles, POS Terminals, other ID Terminals, Parking Meters, Security & Access Control Terminals and Credit Authorization Terminals etc.
MINGTE offers a full line of Smart Card Readers, Bill Acceptors and Card Collectors & Dispensers with a variety of manual dip, manual swipe, motorized, standalone, contactless, mobile payment types and single feed bill acceptors. With 2 factories located in Shenzhen, China and experienced team in payment industry, MINGTE has a creative talent pool in both engineering and management. In its engineering team, more than 85% employees have almost 10 years’ experience in the field of smart card payment.
MINGTE has obtained various patents relating to smart card reader technologies, and passed various quality inspection tests from China Bank Card Test Center, EMV Consortium, and China Ministry of Information Industry.
Certificates:
Exhibitions:
MINGTE willing to show the perfect quality and reasonable price to all over the world, and that we participated in exhibitions for years, such as: Cards&Payments Middle East, IFA in German, TRUSTECH CARTES in France, Vend EXPO in Russia etc.
IN DUBAI IN FRANCE IN INDIA
Our Sales & After-sales Service:
1. MINGTE provide one-to-one custom solutions to overseas market with OEM&ODM;
2. Quality Assurance: We focus on every product in the factory strictly quality controlled;
3. Professional sales engineers stand by 24 hours waiting to serve you;
4. Material checking: strictly control of material, meet international requirement standards;
5. Semi-finished products inspection: product inspection before 100% finished;
6. Production line test: professional work team and engineer to run three times tests;
7.Finished product inspection: quality and property test before products are packed.
Payment & Shipping Service:
1. We accept Alipay, West Union, TT, all major credit cards are accepted through secure payment processor ESCROW;
2. Shipping methods: Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on);
3. EXPRESS: around 3-7 working days to arrive;
4. INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port;
5. By sea: depend on which destination port.
Please contact our sales for additional info.
