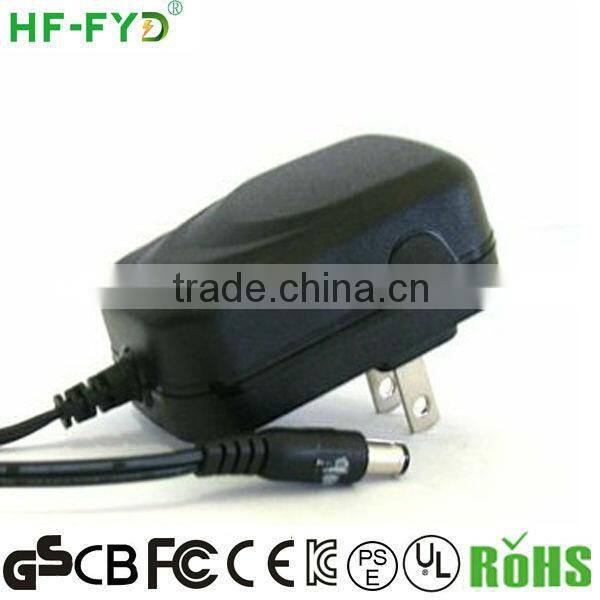

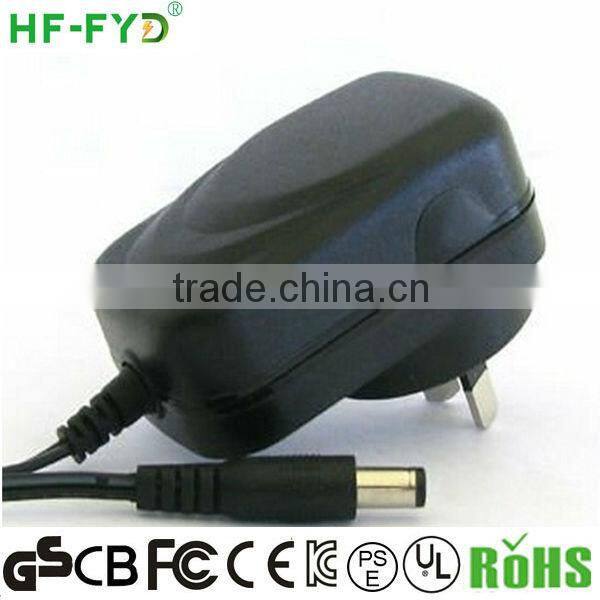

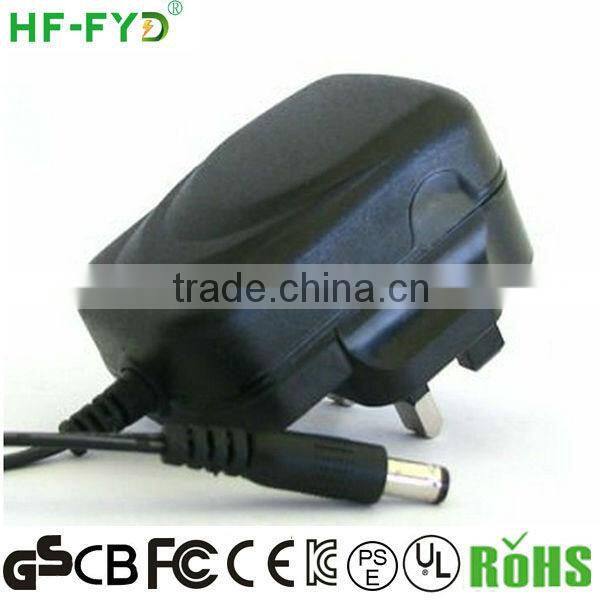

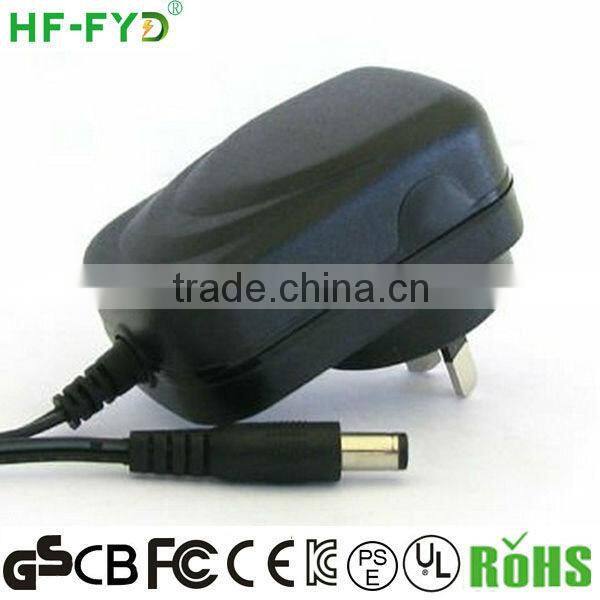

FY0502000 AC Adapter Charger For 7inch Mini Android Tablet 5V 2A Power Supply Cord

Specifications

    AC Adapter Charger For 7inch Mini Android Tablet                                      5V 2A Power Supply Cord

Dear Sir or Madam ,

This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484

Looking forward to your any inquires !

Application

Widely used in the electronic digital,communication,security,lighting,medical,etc.

Specification

Switching mode power supply

1.Rated input voltage:AC100-240V 50-60Hz
2.Output voltage:DC 5V 2A

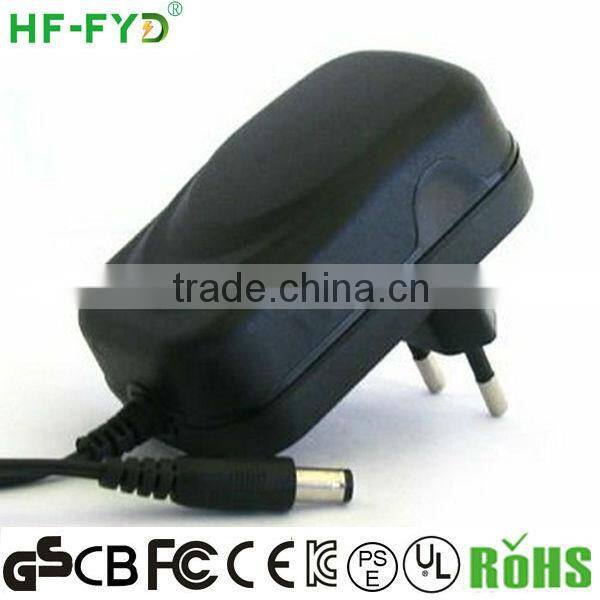

3.Plug in:Can change 4 kinds:UK(BS)--3pin,UL --2pin,GS --2 round pin,SAA--2pin
4.Operation temperature:0 to +45 degrees
5.Input current fuse protection
6.Output short Circuit Protection
7.Overvoltage protection
8.Overcurrent protection

Description:

1.Universal input voltage
2.UL/CUL, PSE, GS,CE, CB, FCC,KC

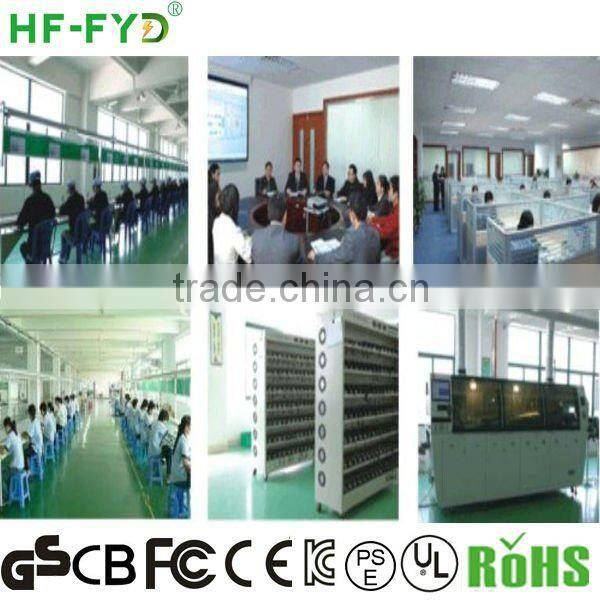

3.10Years Experience Factory
4.High efficient more than 85%
5.2years warranty
6.High quality,best price
7.Punctual and Fast delivery

Advantages

1. input voltage: AC 100-240V 50/60HZ
2. range voltage: AC 90-264V 47/63HZ
3. High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave

Protections

1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery
5Load regulation: ±5%


Environmental requirement

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)

BASIC TERMS:

MOQ (Min Order Qty): 500PCS
Lead-Time: 7-10 Working Days Normally
Warranty Period: 2 years
Supply Capability: 5000 Units Per Working Day
Payment Methods: T/T, Paypal, Western Union, L/C ,etc
Shipping Mode: Express Courier, Air, Sea

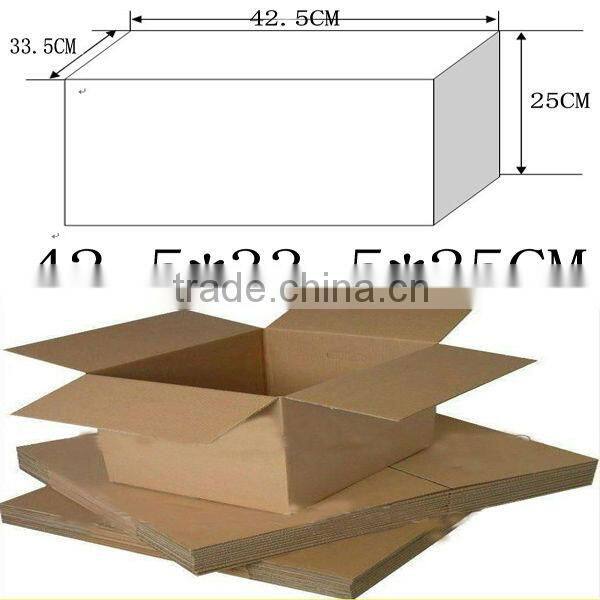

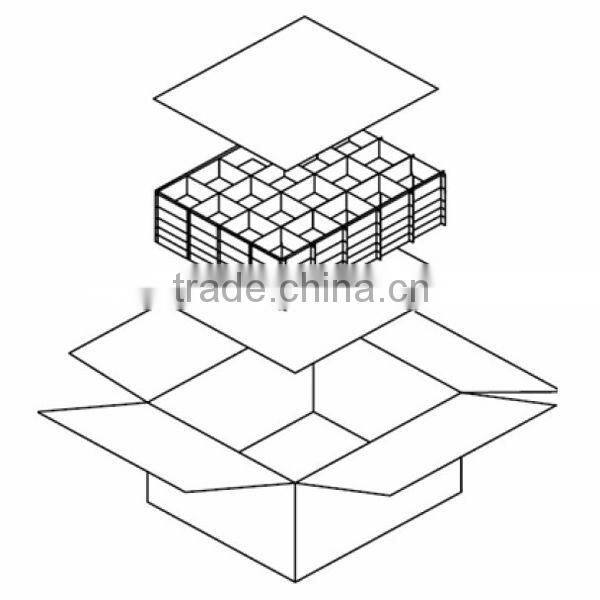

Packing

1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement

After service

This product can be repair within one year for any defects or irregularities caused by the factory.

Remarks

Indooruse only
Usein dry environment
Donot open the charger if not professional person

Usagedguide

1.insertthe AC adapter prongs fully into the wall outlet.
2.Regmovehe AC adapter from the wall outlet when it is fully charged or not in use
if you are interested in any of our products,please feel free to visit our website,or contact us for more information,we look forward to establish friendly business relations with you in near future.

AC Input Voltage.............100~240V AC 47~63 Hz

Inrush Current..............<30A(AC 240V at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%

DC Voltage Regulation

DC Output Current

Output Ripple & Noise............. 50 mVp-p@ 25 degrees C

Output Dynamic Load Response

Overshoot at turn-on/ turn-off.............<10%

SCP...........<0.1 ohms

OCPlimits.........6A

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)

Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)

Standards............Meet IEC60950-1standard requirement

Leakage Current.............not exceed 0.25mA at 220Vac/50Hz

Insulation Resistance...........≥50MΩ ,500VDC

Overshoot at turn-on/ turn-off.............<10%

100%Hi-pot test

100%Hi-pot test
