Home > Products > CC Cotton conveyor belt > (CC-56)Huashen Cotton canvas Conveyor Belt widely used in belt conveyor
(CC-56)Huashen Cotton canvas Conveyor Belt widely used in belt conveyor
- ShangHai
- T/T L/C D/P D/A Credit Card
You May Like
-
Tension Resistant Rubber Conveyor Belt CC Conveyor Belt
-
Cc Cotton Canvas Conveyor Belting for Conveyor (CC56)
-
CC56 TC70 cotton canvas conveyor belt
-
Cotton/ Nylon/ Polyester canvas Fabric Inserted Cold-resistance Conveyor Rubber Belt
-
CC /EP /Nylon / Steel /pvc/Steel cord acid/alkali resistant rubber belt
-
Best selling products Polyester cotton fabric diamond sanding conveyor belts
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HuaShen | |
| Model Number | CC/TC |
Product Description

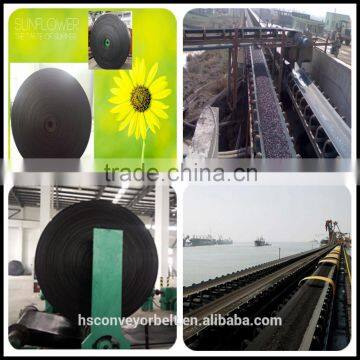

(CC-56)Huashen Cotton canvas Conveyor Belt widely used in belt conveyor
1. Description
Cover properties of the belts
Cover grade | Tensile strength≥ | Elongation≥ | Abrasion≤ | Change rate of tensile strength and elongation after aging | |
Mpa | Kgf/cm² | % | mm³ | % | |
High Laceration(H) | 24 | 240 | 450 | 120 | -25~+25 |
High Abrasion(D) | 18 | 180 | 400 | 100 | -25~+25 |
Ordinary(L) | 15 | 150 | 350 | 200 | -25~+25 |
Specification and technical data of multiply cotton, polyester cotton
conveyor belt
Fabric type | Fabric structure | Fabric s pecs | Ply thickness (mm/p) | (N/mm) Strength series | (mm) Cover thickness | Width mm | Length m | ||||||
Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
Cotton (CC) | Cotton (C) | Cotton (C) | CC-56 | 1.10 | 112 | 168 | 224 | 280 | 336 |
2-8
| 1.5-4.5 | 400-2500 |
≤300
|
Polyester cotton (TC) | Polyester cotton (TC) | Cotton (C) | TC-70 | 1.0 | 140 | 210 | 280 | 350 | 420 | 1.5-8 | 1.5-4.5 | 400-2500 | ≤300 |
Adhesion and elongation of the belt
Belt carcass | Adhesive strength | Elongation | |||
Between plies N/mm | N/mm Between rubber and carcass | Longitudinal elongation at break %≥ | Longitudinal elongation at reference load %≤ | ||
Rubber thickness 0.8~1.5mm | Rubber thickness >1.5mm | ||||
Cotton and T/C canvas | ≥3.20 | ≥2.10 | ≥2.70 | 10 | 4.0 |
2:Applications:
Used for conveying materials in such industries as coal, ore, port, metallurgy, electric power and chemical etc.
3.Advantages:
1.Small elongation 2.Good adhension
3.Anti-impact 4.Good abrasion resistance
4:Sucessful Sales Cases:
| Application in Black Metal Industry | ||
| NO. | Clients | Products in Application |
| 1 | Wuhan Iron & Steel Group Corp. | Steel Cord Belt, Heat Resistant Belt, NN Belt, EP Belt, Ordinary Belt |
| 2 | Jiangsu Shagang Group Co., Ltd. | High Angle Sidewall Belt, Steel Cord Belt, NN Belt,Ordinary Belt, EP Belt, Heat Resistant Belt |
| 3 | Maanshan Iron & Steel Co. Ltd. | EP Belt, NN Belt |
| 4 | Panzhihua Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, EP Belt |
| 5 | Jiangyin XingCheng Special Steel Works Co., Ltd | High Angle Sidewall Belt, NN Belt, Ordinary Belt, Heat Resistant Belt, EP Belt |
| 6 | Lianfeng Iron & Steel Co., Ltd. | EP Belt, NN Belt, Ordinary Belt, High Angle Sidewall Belt, Steel Cord Belt |
| 7 | Lihuai Iron & Steel Co., Ltd. | High Angle Sidewall Belt, EP Belt, Ordinary Belt |
| 8 | Tieben Iron & Steel Co., Ltd. | High Angle Sidewall Belt, EP Belt, Ordinary Belt, Heat Resistant Belt |
| 9 | Nanjing Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, EP Belt |
| 10 | Meishan Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt, Rubber Lining Board |
| 11 | Hangzhou Iron & Steel Co., Ltd. | NN Belt, Ordinary Belt, Heat Resistant Belt |
| 12 | Suzhou Iron & Steel Co., Ltd. | Heat Resistant Belt, Ordinary Belt |
| 13 | Anxi Iron-smelting Factory | Heat Resistant Belt, Ordinary Belt |
| 14 | Anshan Coking & Refractory Institute | NN Belt, Ordinary Belt, EP Belt |
| 15 | Anshan Steel Design Institute | NN Belt, Ordinary Belt, EP Belt |
| 16 | Ningbo Jianlong Iron & Steel Co., Ltd. | NN Belt, Ordinary Belt, EP Belt |
Application in Nonferrous Metal, Power, Machinery, Cement Industry | ||
| NO. | Clients | Products in Application |
| 1 | Huayuan Power Plant | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 2 | Junma Power Plant | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 3 | Guohua Taicang Power Co., Ltd. | EP Belt, Ordinary Belt |
| 4 | Jiangsu Huaiyin Huaneng Power Co., Ltd. | EP Belt, Ordinary Belt |
| 5 | Henan Zhoukou Longda Power Co., Ltd. | Steel Cord Belt, EP Belt, Flame Resistant Belt |
| 6 | Beijing Sanjili Power Group Co., Ltd. Zhangjiagang Branch | EP Belt, NN Belt |
| 7 | Jiangxi Dexing Copper Mine | EP Belt, Ordinary Belt, Flame Resistant Belt |
| 8 | Sichuan Lala Copper Mine | EP Belt, Ordinary Belt |
| 9 | Sichuan Huili Zinc Mine | EP Belt, Ordinary Belt |
| 10 | Heilongjiang Jixi Black Lead Mine | Sidewall Belt, EP Belt, Flame Resistant Belt |
| 11 | Pingxiang Conveyor Machinery Factory | NN Belt, Ordinary Belt |
| 12 | Hexing Conveyor Machinery Factory | EP Belt, Ordinary Belt |
| 13 | Yichun Conveyor Machinery Factory | NN Belt, Ordinary Belt |
| 14 | YongAn Cement Factory Ordinary Belt | Ordinary Belt |
| 15 | Jiangyin No.2 Cement Factory | Heat Resistant Belt, Ordinary Belt, Sidewall Belt |
| 16 | Hangzhou Glass Factory | Ordinary Belt, Sidewall Belt |
We offer EP/Nylon/Cotton/Steel mesh belt with heat/cold/high temperature/burn/
chemical/oil resistant properties and our rubber belts are widely used in mining/
cements/metallurgy /ports industries.Any needs,please contact us.
