Home > Products > Concrete Rubber Hose > DN125 concrete pump rubber hose end

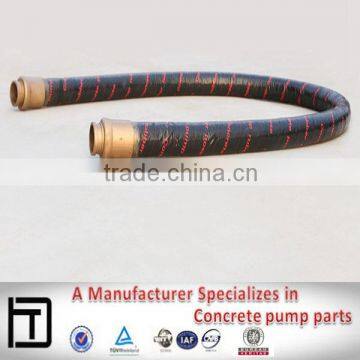

DN125 concrete pump rubber hose end
- shanghai
- T/T Credit Card
You May Like
Product Details
| Material | Other, Stainless Steel, rubber, steel,fabic | Technics | Forged | |
| Type | Coupling | Place of Origin | Zhejiang, China | |
| Model Number | DN125 Concrete Pump Hose | Brand Name | DF Concrete Pump Parts | |
| Connection | Welding | Shape | Other, Round Hose | |
| Head Code | Other, round |
Product Description
DN125 concrete pump rubber hose
1.Innner details:
Steel hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure (bar) | Bend radius (mm) | Weight (kg/m) |
2" | 50 | 9±0.75 | 68±1.5 | 65-85 | 240 | 200 | 2.6 |
2.5" | 64 | 10±0.75 | 85±1.5 | 65-85 | 240 | 250 | 4.3 |
3" | 76.2 | 12.9±1 | 102±1.5 | 65-85 | 240 | 270 | 6.1 |
3.5" | 89 | 13.5±1 | 116±1.5 | 65-85 | 240 | 290 | 8 |
4" | 101.6 | 14.2±1 | 130±1.75 | 65-85 | 240 | 300 | 9 |
4.5" | 115 | 14±1 | 143±2 | 65-85 | 240 | 320 | 10.2 |
5" | 127 | 16±1 | 158±2 | 65-85 | 240 | 360 | 12.5 |
Fabric hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure (bar) | Bend radius (mm) | Weight(kg/m) |
2" | 51±0.7 | 11.5±0.7 | 74±1 | 65-85 | 220 | 200 | 2.8±0.2 |
2.5" | 63.5±0.8 | 12±0.7 | 88±1 | 65-85 | 220 | 250 | 3.7±0.3 |
3" | 76±1 | 14±1 | 104±1.2 | 65-85 | 220 | 270 | 4.9±0.4 |
3.5" | 89±1 | 15±1 | 119±1.2 | 65-85 | 220 | 290 | 5.8±0.4 |
4" | 102±1 | 16 | 135±1.2 | 65-85 | 220 | 300 | 7.4±0.4 |
4.5" | 114 | 16±1 | 148±1.5 | 65-85 | 220 | 320 | 8.5±0.5 |
5" | 127±1 | 16±1 | 159±1.5 | 65-85 | 220 | 360 | 9±0.5 |
| No. | 1 | 2 | 3 | 4 | 5 |
| Size | DN50 2" End | DN65 2.5" End | DN75 3" End | DN100 4" End | DN125 5" End |
Concrete Pipe Series
| Type | DN | Thickness (mm) | Length (mm) | Weld-on Ends | Weight (kgs) | Applicable Pump Brands |
| ST52 Seamless pipe | 125 | 4.5 | 3000/ 2000/ 1000/ 500 | 148mm | 46 | PM,Schwing,Sany |
| 7.0 | 148mm | 72 | PM,Schwing,Sany | |||
| 45Mn2 Hardened Pipe | 125 | 4.5 | 148mm Chrome Carbide Insert | 48 | PM,Schwing,Sany | |
| 7.0 | 148mm Chrome Carbide Insert | 76 | PM,Schwing | |||
| Twin-Wall Pipe | 125 | 2.5+2 | 148mm Chrome Carbide Insert | 48 | PM,Schwing,Sany | |
| 3.0+2 | 148mm Chrome Carbide Insert | 53 | PM,Schwing,Sany | |||
| ZX-Pipe(ST52) | 125 | 7.0 | 5" ZX flanges | 72 | PM | |
| 8.0 | 5" ZX flanges | 82 | PM | |||
| MF-Pipe(ST52) | 125 | 4.5 | 5" F/M flanges | 46 | Schwing | |
| 7.0 | 5" F/M flanges | 72 | Schwing |
The lifetime of the pipe
Other Related Products
Instructions for Use
Our Principle
Exhibition
Certification
Marketing
Use for
1.Are you a manufacture or a trading company?
A manufacture.
2.What is your advantage?
First we are a manufacture, so the product price is more competitive than that of a
trading company. Second, it’s much easier to communicate with the factory, and that
will save us more time. Third, we also have several partners, supplying related
products so that can meet customers’ need.
3.How do you regarding your product quality?
As our principle is more safety to save more. In China, there are lots of manufactures
of this line, but we are the first one that use the forging technic in producing, firmly
meet the PM standard.
4.Can I get some samples?
Of course you can.The sample is free, you only need to pay the freight.
For some products are not small, like concrete pump pipe,
it’s very difficult to deliver one pipe of 3000mm. If it’s possible, we’d like that
you can come here to visit our factory. Welcome!
