Bimetallic Treatment Extruder Single Screw Barrel ( Screw and Barrel )
US$ 300 - 5,000
/ Set
1 Set(Min. Order)
- Ningbo Shanghai
- T/T D/P D/A
You May Like
-
Bimetallic Extrusion QunYing Pvc Tungsten Carbide Screw Barrel
-
Bimetallic Chen Hsong Injection Screw Barrel Extruder Screw Barrel
-
Bimetallic Sumitomo Injection Screw Barrel Extruder Screw Barrel
-
Bimetallic Screw Barrel for Extruder Machine
-
Bimetallic Screw Barrel/screw Barrel Extruder/extruder Screw Barrel for Upvc Pipe
-
Bimetallic Screw Barrel for Film Blowing Machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | QunYing | |
| Model Number | QY-N308 |
Product Description
Specifications
1.screw barrel2.material:alloy-steel of high quality
cessed to drawing or your request
screw barrel
Features Specifications: 38 crmoala screws and barrels for extruder machine
Instructions for 38 crmoala Screw:
1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.
2.The models of screw include:
2.The models of screw include:
Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.
Groove multi-die type, composite type, mixing type and separating type.
3. The material of screw: manufactured with high-quality nitro alloy steel, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.
Material:
Alloy-steel of high-quality
1)38 CrMoAIA(JIS SACM645)
2)42CrMo(AISI4140)
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)SKD61
Heat-treatment

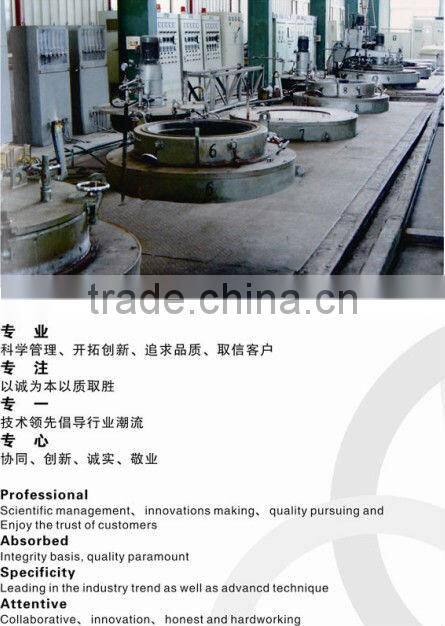

Nitriding treatment
Electroplate hard-chrome
High-frequency quenching

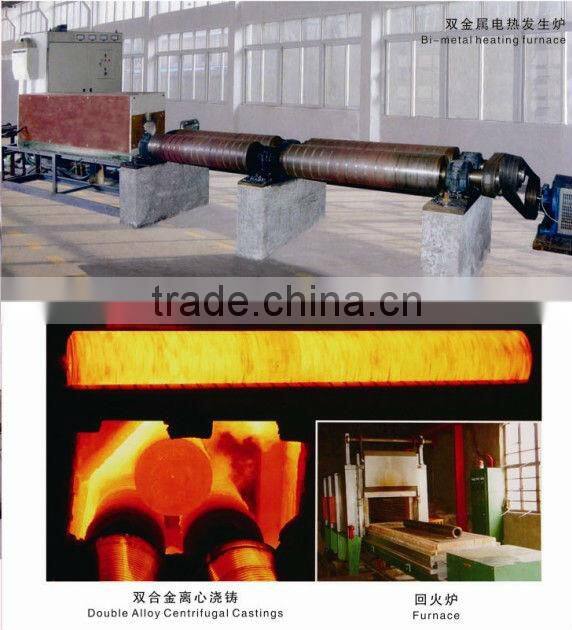

Spraying corrosion wear-resisting dual metal layers
Vacuum quenching
Technical Parameter |
| Steel Material | DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA |
| Deepness of Nitriding Layer | 0.7 mm -0.9 mm |
| Hardness of Nitriding | HV900 - HV1,000 |
| Nitriding Brittleness | ≤Grade 1 |
| Chromate plating | Thickness 0.05 mm - 0.10 mm, hardness HV950 |
| Special treatment | Carbide coating on screw flight and bimetallic barrel |
| Screw straight tolerance | 0.015 mm/m |
| Surface roughness | Ra 0.4μm |
|
