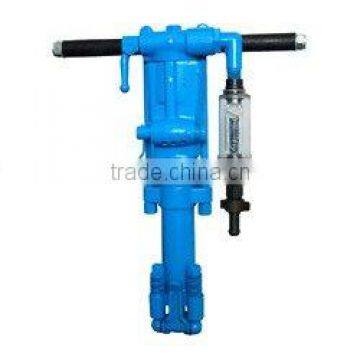

Y26 Hand-hold Rock Drill
- 0 per Month
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Shenlong | |
| Model Number | Y26 |
Product Description
Specifications
Y26 type rock drill is used at mines,railway,irrigation and quarries to digging holes and for the second digging holes.01.Instruction
Y26 type han-hold rock drill is used at mines,railway,irrigation and quarries to digging holes and for the second digging holes.Y26type hand-hold rock drill can be used to digging dry or wet by horizontal holes,vertical holes or angling holes on medium-hard rock or hard rock.
02.specification
Weight 26kg
Length 650mm
Cylinder dia. 65mm
Piston stroke 70mm
Working pressure 0.4Mpa
Impact energy ≥30J
Impact frequency ≥23Hz
Air consumption ≤47L/S
Working water pressure 0.3~0.35Mpa
Air innder dia 19mm
Water inner dia 13mm
Rock drill hole dia. 34~42mm
Rock drill hole deptj 5mm
Shank size 25*108mm
22*108mm
