YT27
US$ 70 - 150
/ Piece
10 Pieces(Min. Order)
- Fuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | shenlong rock drill | |
| Model Number | YT27 | Type | Other, Air Drill, Jack hammer rock drill | |
| Average Air Consumption | <=83.3 L/S | Maximum Torque | 56 | |
| No-Load Speed | 150 |
Product Description
Specifications
YT271. high efficiency
2. horizontal and rock drill downward drilling
3.hard rock drilling(f=8-18)

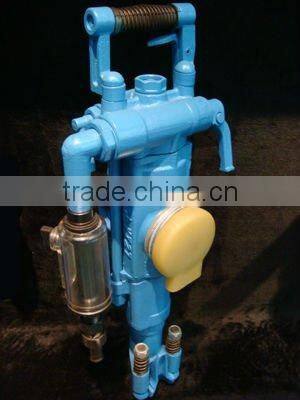

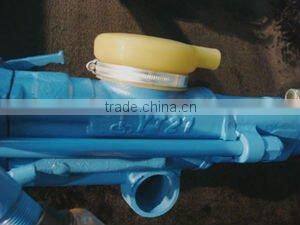

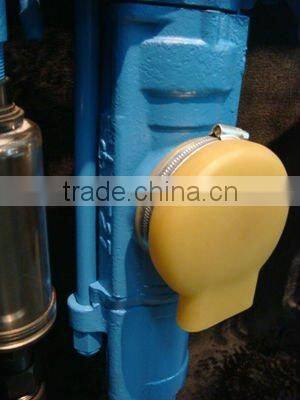

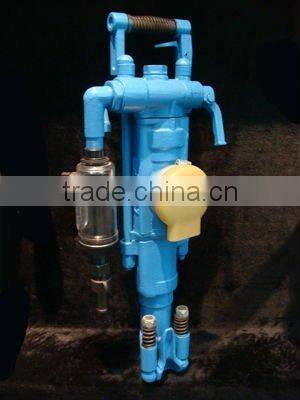

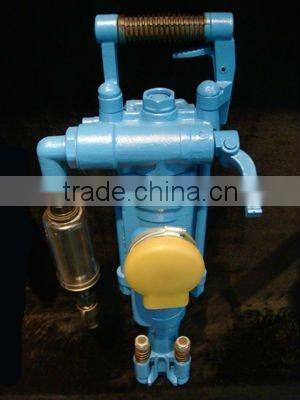

YT27 rock drill
The YT27 air leg rock drill is a kind of high efficiency air leg rock drill machinery.it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
Drilling in quarry and coal or limeston mine.
Blasting for railway construction
water conservancy construction and
defence project facility.
| YT27 Air leg rock drill | ||
| Weight | 27 kg | |
| Outside dimension(L×W×H) | 668×248×202mm | |
| Cylinder dia | 80mm | |
| Piston stroke | 60mm | |
| Impact energy | ≥75.5J | |
| Impact frequencey | ≥ 36.9Hz | |
| Air consumption | ≤83.3L/S | |
| Air pipe (inner dia) | 25mm | |
| Water pipe (inner dia) | 13mm | |
| Air pressure | 0.63MPa | |
| Water pressure | 0.3MPa | |
| Bore dia | 34-45mm | |
| Bore depth | 5m | |
| Shank dimensions(hex×length) | 22×108±1mm/ 25×108±1mm | |
| Model FY250B oil lubricator | ||
| Weight | 1.2kg | |
| Oil capacity | 0.25L | |
| Air leg | FT160A | FT160B |
| Weight | 17kg | 16 kg |
| Llength:max | 3006mm | 2526mm |
| min | 1668mm | 1428mm |
| Propulsion stroke | 1338mm | 1098 mm |
