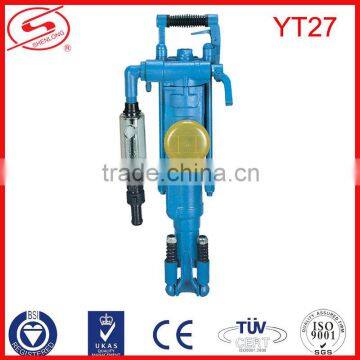

YT27 Rock Drill
- china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | shenlong | |
| Model Number | YT27 rock drill | Weight | 26kg |
Product Description
Specifications
YT27 rock drill1. Stability
2. Perfect Leg-Drill Balance
3. Uniform High Drill Speed
4. Comparable performance
Item Name:YT27 rock drill
Features: light weight>high torgue>very reliable&resistant to wear>large sliding face>high impact energy>good penetration in hard&soft rock>low spare parts consumption.
| products specifications | |
| item name | YT27 |
| Weight | 26kg |
| Overall dimensions | 668mm |
| Stoke | 60mm |
| Cylinder Dia | 80mm |
| Air pressure | 0.4-0.63mpa |
| Water pressure | 0.4mpa |
| Impact energy | 75.5J |
| Torque (at0.4MPa) | |
| Impact frequency | >36Hz |
| Air consumption | 85L/S |
| Drilling speed | |
| Max drilling depth | >6m |
| Air pipe inside dia | 25mm |
| Water pipe inside dia | 13mm |
| Drill bit size | 32-42mm |
| Shank size | H22X108mm |
| FT160 Air leg | |
| Weight | 17kg |
| Length | 1800mm |
| Push stroke | 1365mm |
The rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
