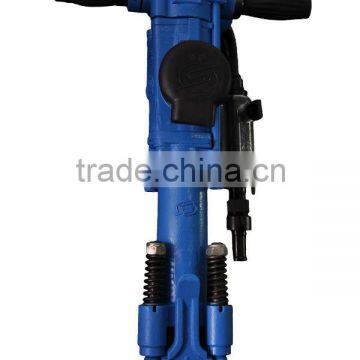

YO18 Stone Breaker
- fuzhou
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | shenlong | |
| Model Number | YO18 | Type | Cutting Tools |
Product Description
Specifications
YO18 Stone Breaker1. Proper Weight
2. Great Efficiency and Speed
3. Break Ferroconcrete,Rocks and Asphalt
item name : YO18 Stone Breaker
Features: light weight>high torgue>very reliable&resistant to wear>large sliding face>high impact energy>good penetration in hard&soft rock>low spare parts consumption.
| products specifications | |
| item name | YO18 |
| Weight | 18kg |
| Overall dimensions | 550mm |
| Stoke | 45mm |
| Cylinder Dia | 58 mm |
| Air pressure | 0.4-0.5mpa |
| Water pressure | 0.2-0.3mpa |
| Impact energy | 24.5J |
| Torque (at0.4MPa) | 7.85N•m |
| Impact frequency | >31.6Hz |
| Air consumption | 22.5L/S |
| Drilling speed | 120mm |
| Max drilling depth | >5m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 8mm |
| Drill bit size | 32-48mm |
| Shank size | H22X108mm |
Y018 stone breaker is suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When its matched with air leg Model FT100, it can blast holes from different directions and angles.
Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.
Its recommended to be matched with Model py-1.2/0.39 air compressor which is powered by Model RS1100 diesel engine. Other suitable air compressors can also be matched with this rock drill.
