Printer Eco Solvent,eco Solvent Inkjet Printer,solvent Inkjet Printer

FOB Price

US$ 6,000 - 11,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Other, Digital Printer
Place of Origin	Guangdong, China	Brand Name	CAE
Usage	Other, Digital Printer	Automatic Grade	Automatic
Voltage	220V	Gross Power	200W
Dimensions(LWH)	470010301570mm	Weight	800KG
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

1. Heavy body machine very stable
2. High resolution

Printer eco solvent,eco solvent inkjet printer,solvent inkjet printer

Specification:

Machine Type	H8 Digital Inkjet Printer
Print Head	8*KONICA512MN/14PL		8*KONICA512LN/42PL
Print Mode	360×1080dpi/3P	360×1440dpi/4P	180×720dpi/2P	180×1080dpi/3P
Print Speed	48sqm/h	35sqm/h	80sqm/h	55sqm/h
Print Width	3300MM
Printer Interface	USB
Media Transmission	Roll to Roll
Data Transfer	Edge RIP while print/RIP post-print
RIP Software	ULTRAPRINT,PHOTOPRINT, MAINTOP
Heating System	Two-heating: Before printing, print post.
Cleaning System	Separation dual function of pressure and suction cleaning
Material Systems	Automatic feeding system
Ink Types	C,M,Y,K four-color or C,M,Y,K,LC,LM 6-color solvent-based ink
Power Requirements	220VAC±10%,<4A,50/60HZ/220VAC±10%,<16A,50/60HZ
Working Environment	Temperature:20°C~30°C,Humidity:40%~70% RH
Media Type	Normal light box cloth, body perspective software, photo paper, etc.
Dimensions	(L×W×H)4620×1030×1570MM
NW/GW	800KG/900KG

H8 high advanced function deploywnt

4 Heads staggered technology;
2pcs D80 thick rubber tollers feed+balance bar;

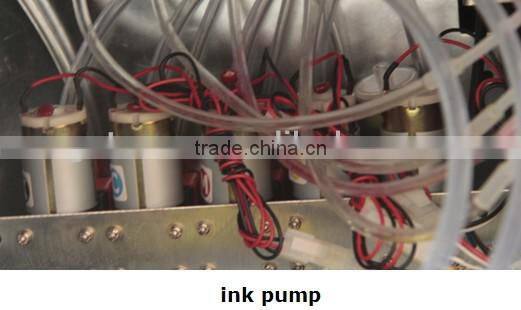

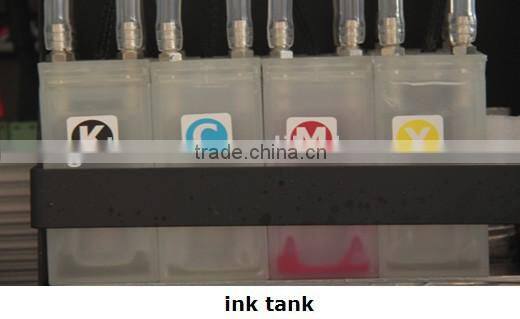

Secondary ink tank, ink circuit heating system;

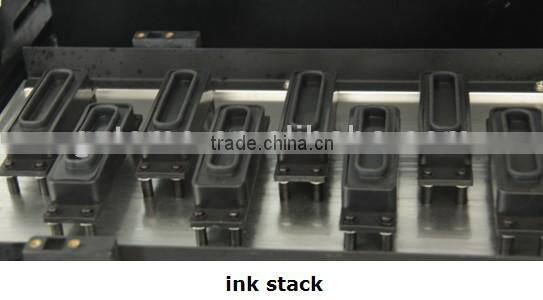

Unique ink stack printhead protection device;
Reserved suction outlet connecting to the vacuum cleaner,high suction pressure to suck the remaining ink in the printhead surface
Stepless height adjustable of printhead;

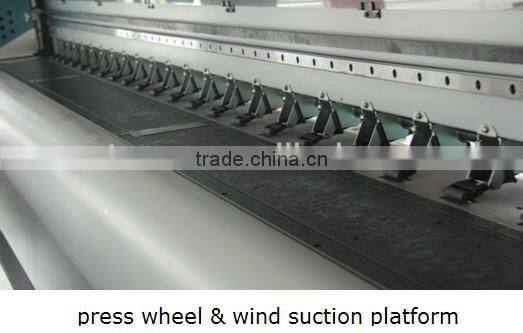

Subsection printing plaform suction, streng wind to ensures smooth;

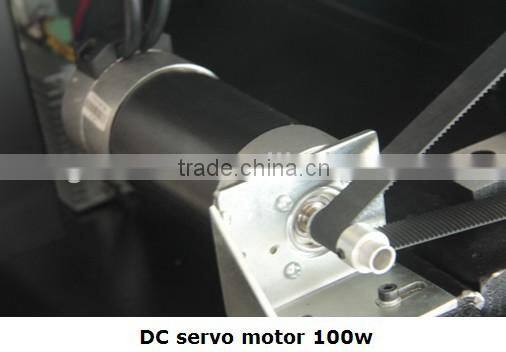

Advanced motion system, ink-supply system, Machinery Manufacturing system;
Three stage adjustable temperature heating for the materials;
Taiwan HIWIN linear lead trail;
Professional media feeding system (optimal);
Model can choose 512/256, 4/8 head configuration;
High-performance control system.
