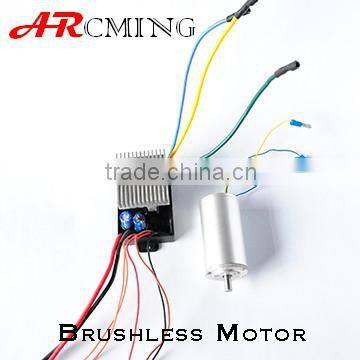

Micro Mini Brushless Motor With 36v Brushless Motor Controller

Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement

Shipping Detail:Shipping by sea, air or express delivery are all available.

Brushless DC motor

l  Profile

Brushless DC motors consists of the motor body and controller, is a typical mechatronic products. Because brushless DC motor is running self-controlled, so it does not like synchronous motors under heavy starting with frequency conversion to variable speed, which is added starting additional winding on the rotor, and it will not be out of step and oscillate at the time of mutation load. The permanent magnet of small and medium-capacity brushless DC motor is always more high energy product rare earth neodymium iron boron (Nd-Fe-B) materials. Thus, the volume of rare earth permanent magnet brushless motor is far smaller more than the three-phase asynchronous motor with same capacity.

Brushless DC motor has the DC brush motor characteristics and the frequency change devices, so they are called DC frequency conversion, the international generic term is the BLDC. The operating efficiency, low-speed torque and speed accuracy of brushless DC motor is better than any inverter control technology.

Detail

———————————————————————————

Electrical Performance

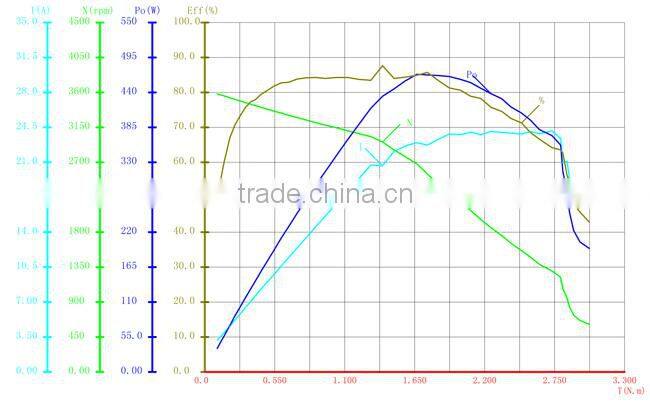

The Curve of Performance

The advantage of the brushless motor:

1. Brushless, low interference

Brushless motor eliminates brushes, the most immediate change is that there is no spark generated when the motor is running, thus greatly reducing the spark radio interference.

2. Low noise, smooth operation

Brushless motor has no a brush, the friction is greatly reduced in running, and smooth operating; noise will be much lower, this advantage is a huge support for the model running stability.

3. Long life, low maintenance costs

There is no brush, so the main loss of brushless motor is from the bearing, at the mechanical point of view, the brushless motor is an almost none maintenance electric motor, and when necessary, you can only clean some dust.

Features of our products:

1, widely power range: Our Company can provide 5W - 200KW brushless DC motor,

2, the unique non-magnet technology: the above 5KW power motors are applied the International leading of non-magnet technology to solve the electromagnetic eddy problems in high-power motor, reducing the motor heat and energy consumption, efficiency is improved 30 %.

3, cost advantage

4, powerful development capabilities: we have fifteen years of experience in R&D and production of brushless motor, with profound technical background, As the partner of Beijing Tsinghua University and Shanghai Tongji University with the project of new energy sources development, we have been widely trusted by high-end customers at home and abroad.

5, flexible customization capabilities

6, the highest sealing rating: IP67

Workshop

Quality control

QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation

Application

lThe application of scope:

Usually used in the equipment with high control requirements and high speed, such as model of aircraft, precision instruments and other device with strict control of the motor speed, so it was only the use of high-end equipment.

Aerospace, aviation, marine, ships, military etc.
Machine tools, machining centre, robots, robotics, artificial limbs etc.
Textile machinery, chemical machinery, petroleum machinery, metallurgical machinery, light machinery, printing, printing machinery, carton packaging machinery, energy, machinery, energy equipment etc.
Medical equipment, communications equipment, electronic manufacturing equipment, radar equipment, satellite ground receiving equipment, semiconductor manufacturing equipment, automatic control equipment, automatic welding equipment, optical manufacturing equipment etc.
Power tools, advanced instruments, measuring instruments, analytical instruments, electrical tools etc.
Electric bicycles, electric scooters, electric scooter, electric golf carts, electric wheelchairs, electric beach car etc.

FAQ

Why choose us

Company view

The patent certificate

Our purpose:

"faith-based science and technology, honesty and trustworthiness, innovation, perfect quality, Customer satisfaction" . We have diversified products to meet the needs of clients.

Welcome to contact us for more information or send us inquiry with details directly.
