Home > Products > sds drill bit&sets > SDS drill bits plus shank and single cutter
SDS drill bits plus shank and single cutter
USD $1.52 - $71.88
/ Piece
200 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | boyu | |
| Type | Indexable Drill Bit | Material | Tungsten Carbide | |
| Use | Masonry Drilling |
Product Description

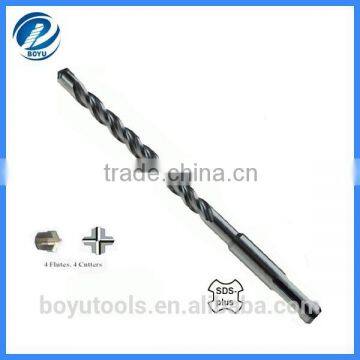

SDS plus shank single fluted drill bits
1.The following electric hammer drill bit are machined from chrome steel fitted with carbide insert brazed at a very high temperature to withstandard severe heating when drilling hard mateials.
2.For drilling on granite,concrete,stone,masonry,tiles and marble
3.Φ10.0-45.0mm,Overall length:110-1000mm
4.Fit hammer drills with SDS-MAX chucking,It can be used with BOSCH GBH 5/40 FCE GBH 8/65 DCE.
Industry quality cross cutter SDS plus hammer drill bit
| 1.shank:sds plus,sds max,hex,spline |
| 2.flute:double,single |
| 3.tip feature:flat,cross,W,three |
| 4.package:PVC bag,plastic tube,hanger,etc |
| Diameter:4-25mm |
| Length:110-1000mm |
| Drilling for:clinker, concrete, brick, natural or artifical stone. |
| Pakeage:hangtag, pouch bag, tube, blister card. |
| The drill body of carbide alloy electric hammer drill employs high grade ally steel. The drill tip is welded with YG carbide alloy. It can be used with various types of electric hammer and it is a widely applicable and high efficient drilling tool for construction or installation trade. |
| SDS Plus drill bits can be used with Electric Hammer of BOSCH CO., of AFG CO., of HILTI CO., of BLACKER OF MAKITA CO., of HITACHIKOKL CO., of TOSHIBA CO., The shank is round with Dualarc dual keyway. |
| Drill | Working | Total | Drill | Working | Total |
| Diameter | Length | Length | Diameter | Length | Length |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 4 | 50 | 110 | 10 | 150 | 210 |
| 4 | 100 | 160 | 10 | 200 | 260 |
| 5 | 50 | 110 | 10 | 250 | 310 |
| 5 | 100 | 160 | 10 | 290 | 350 |
| 5 | 150 | 210 | 10 | 340 | 400 |
| 5.5 | 50 | 110 | 10 | 400 | 460 |
| 5.5 | 100 | 160 | 10 | 440 | 500 |
| 5.5 | 150 | 210 | 10 | 540 | 600 |
| 6 | 50 | 110 | 10 | 740 | 800 |
| 6 | 100 | 160 | 10 | 940 | 1000 |
| 6 | 150 | 210 | 12 | 50 | 110 |
| 6 | 200 | 260 | 12 | 100 | 160 |
| 6 | 250 | 310 | 12 | 150 | 210 |
| 6 | 290 | 350 | 12 | 200 | 260 |
| 7 | 50 | 110 | 12 | 250 | 310 |
| 7 | 100 | 160 | 12 | 300 | 350 |
| 7 | 150 | 210 | 12 | 350 | 400 |
| 8 | 50 | 110 | 12 | 410 | 460 |
| 8 | 100 | 160 | 12 | 450 | 500 |
| 8 | 150 | 210 | 12 | 550 | 600 |
| 8 | 200 | 260 | 12 | 750 | 800 |
| 8 | 250 | 310 | 12 | 950 | 1000 |
| 8 | 290 | 350 | 14 | 60 | 110 |
| 8 | 340 | 400 | 14 | 110 | 160 |
| 8 | 400 | 460 | 14 | 160 | 210 |
| 8 | 440 | 500 | 14 | 210 | 260 |
| 8 | 540 | 600 | 14 | 260 | 310 |
| 8 | 740 | 800 | 14 | 300 | 350 |
| 10 | 50 | 110 | 14 | 350 | 400 |
| 10 | 100 | 160 | 14 | 410 | 460 |
| 14 | 450 | 500 | |||
| 14 | 550 | 600 | |||
| 14 | 750 | 800 |
| Drill | Working | Total | Drill | Working | Total |
| Diameter | Length | Length | Diameter | Length | Length |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 14 | 940 | 1000 | 22 | 150 | 210 |
| 16 | 100 | 160 | 22 | 200 | 260 |
| 16 | 150 | 210 | 22 | 250 | 310 |
| 16 | 200 | 260 | 22 | 290 | 350 |
| 16 | 250 | 310 | 22 | 340 | 400 |
| 16 | 290 | 350 | 22 | 400 | 460 |
| 16 | 340 | 400 | 22 | 440 | 500 |
| 16 | 400 | 460 | 22 | 540 | 600 |
| 16 | 440 | 500 | 22 | 740 | 800 |
| 16 | 540 | 600 | 22 | 940 | 1000 |
| 16 | 740 | 800 | 24 | 150 | 210 |
| 16 | 940 | 1000 | 24 | 200 | 260 |
| 18 | 150 | 210 | 24 | 250 | 310 |
| 18 | 200 | 260 | 24 | 290 | 350 |
| 18 | 250 | 310 | 24 | 340 | 400 |
| 18 | 290 | 350 | 24 | 400 | 460 |
| 18 | 340 | 400 | 24 | 440 | 500 |
| 18 | 400 | 460 | 24 | 540 | 600 |
| 18 | 440 | 500 | 24 | 740 | 800 |
| 18 | 540 | 600 | 24 | 940 | 1000 |
| 18 | 740 | 800 | 25 | 150 | 210 |
| 18 | 940 | 1000 | 25 | 200 | 260 |
| 20 | 150 | 210 | 25 | 250 | 310 |
| 20 | 200 | 260 | 25 | 290 | 350 |
| 20 | 250 | 310 | 25 | 340 | 400 |
| 20 | 290 | 350 | 25 | 400 | 460 |
| 20 | 340 | 400 | 25 | 440 | 500 |
| 20 | 400 | 460 | 25 | 540 | 600 |
| 20 | 440 | 500 | 25 | 740 | 800 |
| 20 | 540 | 600 | 25 | 940 | 1000 |
| 20 | 740 | 800 | |||
| 20 | 940 | 1000 |
