Home > Products > Electronic Accessories > FrankEver GYG-3008 SATV Splitter 8-Way

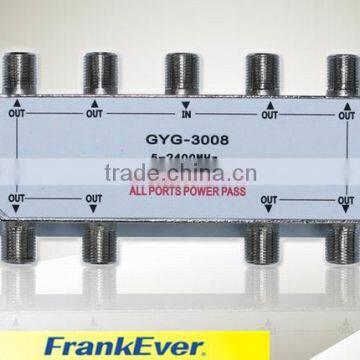

FrankEver GYG-3008 SATV Splitter 8-Way
US$ 1 - 3
/ Piece
500 Pieces(Min. Order)
- Shanghai/Ningbo as per request
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FRANKEVER | |
| Model Number | GYG-3008 |
Product Description
Specifications
FrankEver GYG-3006 SATV Splitter 6-Way
FrankEver GYG-3008 SATV Splitter 8-Way
Product Description:
Description of Splitter:
Zinc die-cast housing, nickle-plated
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
Designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
Designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
Technique parameter:
| Model | 2-way splitter | 3-way splitter | 4-way splitter | 6-way splitter | 8-way splitter | |
| Item | Frequency | Typical | Typical | Typical | Typical | Typical |
| INSERTION LOSS (IN-OUT) (dB) | 5-40MHz | ≤ 4.0 | ≤ 7.0 | ≤ 8.0 | ≤ 11.5 | ≤ 12.0 |
| 40-1000MHz | ≤ 4.5 | ≤ 7.5 | ≤ 8.5 | ≤ 12.0 | ≤ 12.5 | |
| 1000-1750MHz | ≤ 5.0 | ≤ 9.5 | ≤ 10.0 | ≤ 13.5 | ≤ 14.5 | |
| 1750-2400MHz | ≤ 6.0 | ≤ 11.2 | ≤ 11.5 | ≤ 16.5 | ≤ 17.0 | |
| ISOLATION LOSS (OUT-OUT) (dB) | 5-40MHz | ≥ 20.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 25.0 |
| 40-1000MHz | ≥ 24.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 25.0 | |
| 1000-1750MHz | ≥ 24.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | |
| 1750-2400MHz | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | |
| RETURN LOSS (IN. OUT) (dB) | 5-40MHz | ≥ 10.0 | ≥ 9.0 | ≥ 11.0 | ≥ 10.0 | ≥ 10.0 |
| 40-1000MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | |
| 1000-1750MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | |
| 1750-2400MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 |
