Home > Products > See all door viewers > 7" Wireless Video Door Phone

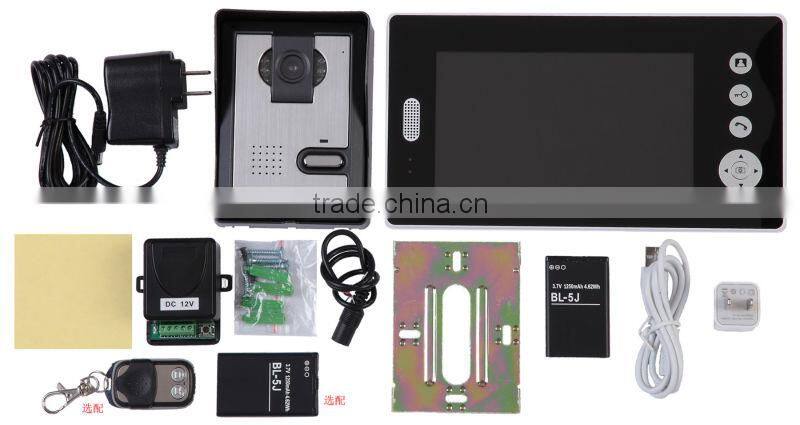

7" Wireless Video Door Phone

FOB Price

Negotiable / Set

10 Sets(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	SUNFOR
Model Number	SF7001	Camera	Other, OV industrial color sensor
Power	Other, lithium battery or 2w solar module

Product Description

Specifications

Wireless Video Door Phone
Unlock control with remote
hands-free call and talk
Doorbell,night viewer
picture taking,256M

3.5" Wireless Video Door Phone --- WDP351

Features

(1) 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 200 meters in free field, robust anti-interference

(2) Clear night vision can capture image in low-illumination environment

(3) Rain shield for the outdoor camera is available

(4) 3.5 or 7 inch TFT color panel for indoor monitor

(5) Surveillance, unlock, hands-free call and talk

(6) 16 chord melodies and melody volume is adjustable

(7) Brightness and talk volume are adjustable

(8) Date (only one camera with one monitor system) and time shown on the screen

(9) Indoor monitor could take pictures automatically or by instruction. It could store up to 100 pictures with date and time

(10) BL-5J battery of camera and monitor is replaceable and rechargeable

(11) Outdoor camera works about 30 days if with battery. It works all the while if connected with the 2w solar module. Or it works all the while if power adapter is connected.

(12) Wireless unlock control supports power on and power off unlock

(13) One outdoor camera supports up to 4 indoor monitors and vice versa

Unlock Control Schematic diagram

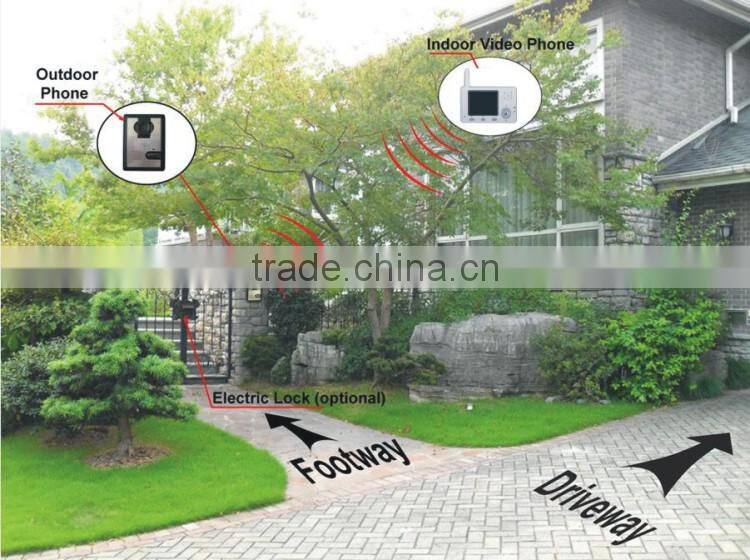

Application Case

Specifications

Camera		Indoor monitor
Light Source	6 LED lights	USB Power	Input:AC 100-240V 50/60Hz Output:DC 5V/1A
Camera	CMOS 300K pixels	Screen	3.5”TFT 320×240 7”TFT 800×480
Battery	BL-5J 1250mAh(option)	Battery	BL-5J 1250mAh
Power supply	Solar moudle, battery or 5V 1A power adapter	Power supply	Battery or 5V 1A power adapter
Size	126×93×42 mm	Size	3.5” 141×87×20 mm 7” 236×130×18 mm
Installation	Double-sided tape or screw fix	Installation	Place on the desk etc. Or wall mounting type
Standby	35 days	Standby	3.5” 20 days 7” 4 days

Failure diagnosis

Malfunction	Checking	Debug
Fail to start the product	If turn the switch to the "ON"?	Turn the switch to the ON
Fail to start the product	If the power of Li-on battery is not enough?	Charge the Li-on battery
Fail to charge	If the plug of power adapter correctly?	Re-connect indoor monitor with power adapter
Fail to charge	If the power adapter correctly get through the 100-240V AC electricity?	Re-insert the plug to make power adapter get AC electricity.
No voice in talk mode	If the talk volume is adjusted to be the least?	To adjust the talk volume to be suitable.
The image is flashing or noisy	If the indoor monitor is close to induction cooker and microwave ovenwhich has magnetic wave?	Keep indoor monitor far away fromthese things which has magnetic wave.
No signal for indoor monitor	If the outdoor camera doesn't connect the power?	To connect power adapter to the outdoor camera
	If the outdoor camera is far away from the indoor monitor?	Keep the distance in 60 meters within (stopped by multi-wall)
	If there is other strong magnetic space bother?	Keep indoor monitor far away fromthe strong magnetic space
