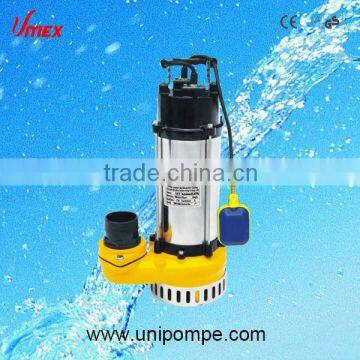

2013 hot-sale V2200F float switch submersible sewage pump

FOB Price

USD $30 - $100 / Piece

50 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Ningbo or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BALLENA,UNIPOMPE
Model Number	V2200F	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	High Pressure
Application	Submersible

Product Description

Specifications

float switch submersible sewage pump
1. Open impeller, double seal
2. Cast iron pump, stainless steel motor casing

V2200F float switch submersible sewage pump

RANGE OF PERFORMANCE
8Flow rate: up to 700 L/min (42 m3/h)
8Head: up to 17 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 20mm

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Bolt	16	"O" ring	31	"O" ring	46	"O" ring
2	Washer	17	Streching washer	32	Bolt	47	Connection nut
3	Handle	18	Capacitor cover	33	Washer	48	Rubber washer
4	Bolt	19	"O" ring	34	Connection part	49	Pump body
5	Nut	20	Capacitor	35	Mechanical seal	50	Rubber washer
6	Protector	21	"O" ring	36	"O" ring	51	Pump cover
7	Screw	22	Motor cover	37	Oil chamber cover	52	Screw
8	Washer	23	"O" ring	38	Screw	53	Filter mesh
9	Cable presser	24	Thermal protector	39	Oil seal	54	Bolt
10	Screw	25	Stator	40	Impeller	55	Line protector
11	Cable	26	Undulated washer	41	Washer	56	Screw
12	Flange	27	Bearing	42	Nut	57	Streching washer
13	Cable protector	28	Rotor	43	Bolt	58	Float switch
14	Float switch	29	Key	44	Washer
15	Bolt	30	Bearing	45	Out-let connector

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL	Power		Outlet	Voltage	Max. Flow	Max. Head	Weight	20' loading qty
MODEL	(kw)	(Hp)	(mm)	(V/Hz)	(m3/h)	(m)	(kg)	(pcs)
V180(F)	0.18	0.2	40	220/50	8	7	8.5	2230
V250(F)	0.25	0.35	40	220/50	9	7.5	9.5	1860
V450(F)	0.45	0.5	50	220/50	12	8.5	18.5	1210
V750(F)	0.75	1	50	220/50	18	12	19.5	1090
V1100(F)	1.1	1.5	50	220/50	20	9	23.5	840
V1500(F)	1.5	2	40	220/50	16	22	26.5	630
V2200(F)	2.2	3	75	220/50	42	17	33.5	630
V1100D(F)	1.1	1.5	50	220/50	14	7	24.0	810
V1300D(F)	1.3	1.8	50	220/50	18	12	25.5	670
V1800D(F)	1.8	2.45	75	220/50	24	10	32.5	540
V2200D(F)	2.2	3	75	220/50	31.2	10	31.5	535

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.

PRODUCTION PROCESS SCHEME
