Cheapest and Best Automatic Pressure Control for Water Pump

Cheapest and Best automatic pressure control for water pump

Specifications

1, pressure control for water pump

2, CE and TUV certificates
3, Start and stop water pump automatically
4, electric switch used in water systems

5, customized setting

Parameters

1. Rate voltage: 220V/240V

2. Max. Rated Current: 10A

3. Frequency: 50HZ/60HZ

4. Max. power:1.1KW

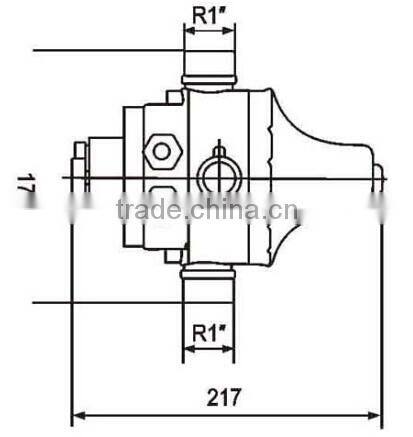

5. Joint screw: R1''

6. protection Garde: IP65

7. Starting Pressure :1.2/ 1.5/ 2.2 bar

8, Max allowable pressure:10 bar(1Mpa)

9, Max ambient temperature:60°C

Descriptions:

1, electric switch used in water systems

2, Start and stop water pump automatically according to the pressure and water storage

3, It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed).

Stop the water pump in the case of water shortage.

Direction for operation:
1, it will indicate the pump has started when the green light Power on lights up after connecting the power.

2, When the yellow light Pump on lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure.

3, If this lapse is insufficient, the red light failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure

Advantage:

1, It has the features of stable performace, low maintenance and long life etc,

2, Completely replaced the complicated traditional pump control system composed of pressure gauge,pressure switch, T-valve, check valve and pressure tank

3, Its starting flow is about 36-60L/h and is convenient for home application

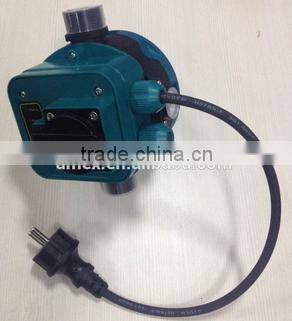

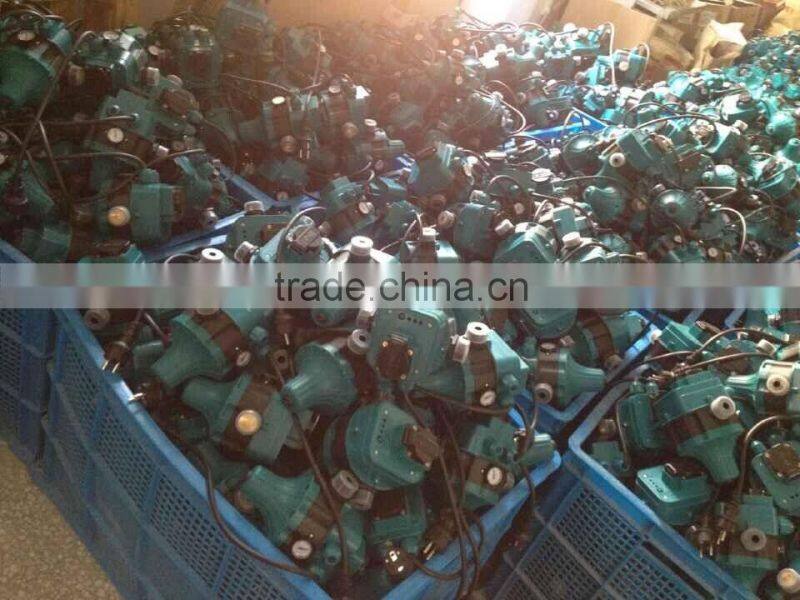

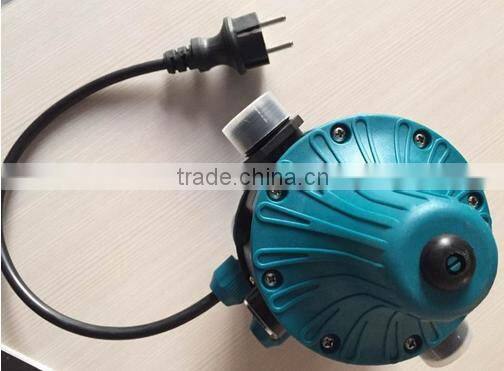

Product Pictures

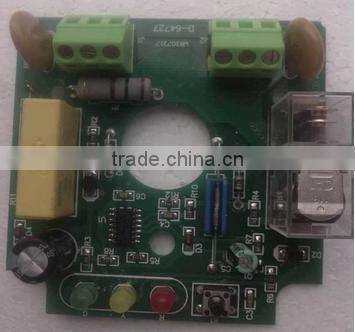

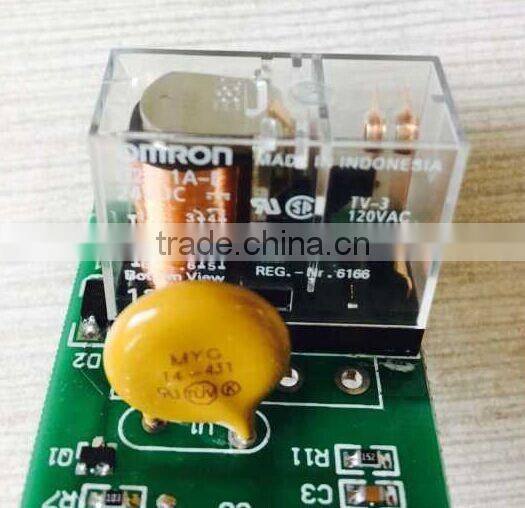

OMRON BRAND CIRCUITS

Installation

Package

Netural White box and Export standard carton

Package size(cm): 61*47.5*24 ( 12 PCS)

PCS/CTN: 12

N.W.(KGS):13

G.W.(KGS):16

OEM service and color box  is  also available. We can place your logo on the color box.
