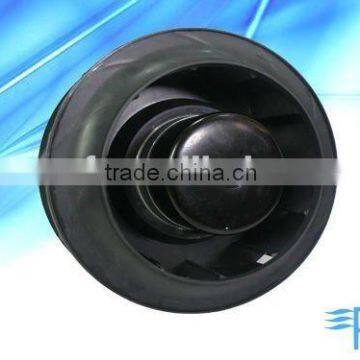

Tired and Tested for you! PSC EC backward Curved Impeller 22063mm

Specifications

Tired and Tested for you! PSC EC backward Curved Impeller 22063mm

Company Profile

PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/EC Backward Curved Impeller, Axial Fan, DC/AC/ECAC Blower and CPU Cooler.

PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, Rockwell Automation, NCR, APC (American Power Conversion, SGI and other many well-known companies in the world.

Key Features

– Compact fans with particularly flat installation depth

– Plug-and-play thanks to optimal installation modules and prefabricated cables and plugs

– Can be used for a wide power range at low noise

– External rotor motor is positioned in the air flow, providing good cooling

– GreenTech EC technology with integrated electronics for mains operation

– GreenTech EC technology is also available in low-voltage versions with 24 or 48 VDC

– 100 % speed-controlled analogue and/or digital interface

– High efficiency of the GreenTech EC centrifugal fans

– Individual added value provided by the large number of functions, including constant volume flow and bus interface

– New, especially quiet and energy-efficient Radical fans

– Extensive range of accessories, e.g. guard grilles and inlet nozzles

– Also available with scroll housing

– For use with aggressive and hot media, also available with outside-mounted, temperature- and noise-isolated internal rotor motor

Model System

Erp 2015

For products with an input capacity between 125 W and 500 kW, the new European Energy-related Products Directive (ErP) to improve energy efficiency will enter into force in 2015 at the latest. Thanks to leading edge PSC EC technology, all PSC fans and motors in these performance classes exceed the ErP Directive even today.

ECAC Technology

When PSC Motor and Fan describes their range of ECAC products, we use the acronym “ECAC,” to refer to an electric motor, fan, blower or impeller that is powered by Electronically Commutated Alternating Current.

This means that the power to the unit comes out of the available power socket; this is 115V AC in the US and 230V AC in Europe and Asia.

Each PSC ECAC Motor is equipped with sophisticated on-board Voltage Conversion Circuitry that converts the 115V AC or 230VAC power input to 90V DC power, and it is this current that actually powers the Motor.

As the motor itself is now actually powered by DC input, we can now incorporate the standard DC Motor functionality that would not be available with a standard AC powered unit.

This functionality includes the following features:

l  The biggest benefit is PWM Speed Control or Analog Speed Control. This allows the User to vary the RPM of the motor to whatever speed is needed by his system; with a standard AC motor, it has to run at maximum speed at all times.

l  A Tachometer Out Signal is provided, so that the User can monitor the performance of the motor. This signal usually provides 3 Pulses per Revolution.

l  An Alarm Signal can also be available which tells the User if the Motor has stopped for some other reason.

The major advantage of ECAC technology, as compared to a straight AC-powered electric motor, is the Power Savings.

As an example, a standard 225mm AC Impeller may consume 160 Watts in power, whereas an equivalent 225mm ECAC Impeller may consume only 108 Watts in power, thereby using 62 per cent as much power as the AC unit.

ECAC powered electric motors, and by extension the full range of ECAC air moving devices manufactured by PSC Motor and Fan, will see on average a drop in power consumption of at least 30 per cent over an equivalent conventional AC powered unit.
