Home > Products > use for boiler > Industrial Boiler Waste Gas Desulfurization Blower Fan
Industrial Boiler Waste Gas Desulfurization Blower Fan
- qingdao port
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Cast Iron | |
| Mounting | Free Standing | Place of Origin | Henan, China | |
| Brand Name | Hengtong | Model Number | XTS-1100 | |
| Power | 18.5~800kw | Voltage | 380~660V, 3~11kV | |
| Air Volume | 2198~42409m3/h, 2198~42409m3/h | Speed | 960~2900r/min | |
| Certification | Other, ISO 9001:2008, ISO 9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
wooden package or as customers' requirements
Product Description
Specifications
Industrial boiler waste gas desulfurization blower fan1.ISO9001 certificate
2.different materials
3.good quality
Industrial boiler waste gas desulfurization blower fan
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler centrifugal fan, cement plant dedicated centrifugal fan,air centrifugal fan , gas delivery centrifugal fan high temperature centrifugal fan, environmental protect centrifugal fan etc were used in industrial and civil fields.
Application
Hengtong blower custom-engineered centrifugal fans are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
Cement | Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom variable speed air blowers are reliable to control the harsh environments of cement manufacturing industry. |
Transportation | The transportation industry requires high quality durable fans for military, construction and mining purposes as well as locomotive and aviation systems. Hengtong Blower’s pre-engineered and custom variable speed air blowers are designed and manufactured for braking schemes, exhaust systems, and general ventilation applications. Our fans are constructed with spark resistant materials and can withstand the highest temperatures for exceptional durability even in the most extreme environments. |
Boiler System | According to different applications, boiler system are used for generating steam and electric energy in many different industries. boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft.over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |
power generation | Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and custom variable speed air blowers are designed by engineers with power generation applications in mind. |
General Ventilation | Hengtong blower designs and manufactures an array of pre-engineered and heavy custom duty fans for various industries to ensure proper ventilation .from airfoil fans to backward inclined fans,we provide highest performance with efficiency and versatility that match to your requirements, our air handing products supply clean air and exhaust unwanted and heated air out of the airflow so as to create an cosy and safe working environment. |
Recommended parts
Industrial boiler waste gas desulfurization blower fan :
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation.
Belt pulley: The structure is compact save a space ,differential transmission.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.

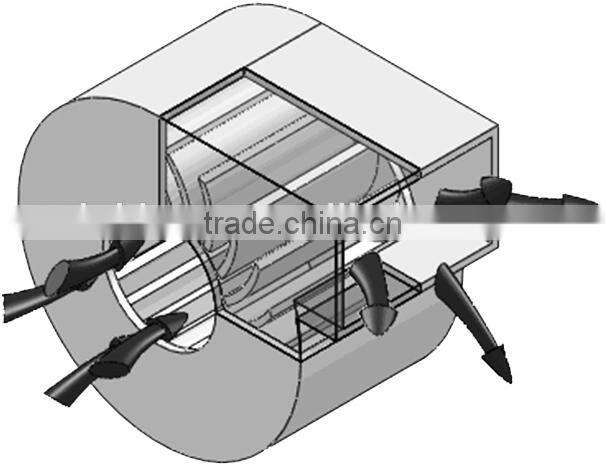

Optional components Flow Process Fan driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 2705 | ~ | 15563 | Pa | |
| 20 | ~ | 116 | mmHg | ||
| 276 | ~ | 1588 | mmH2O | ||
| Flow range | 4420 | ~ | 145533 | m3/h | |
| 7513 | ~ | 247378 | CFM
| ||
Installation Service

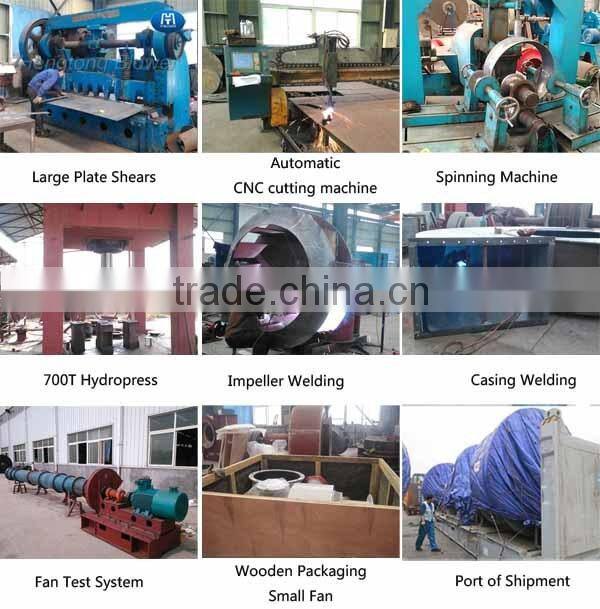

There are three methods for our installation: Production process Quality Assurance
Hengtong's Quality Control programe is supported by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception andcontinuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in place permit the flawless testing of the complete range of our products.
customer visitting
our blowers are exported to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise. We will appreciate it a lot if you can offer us your product performance requirement and operation environment for the ventilation jet fan of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
| m3/h |
Total pressure or static pressure |
| Pa |
Medium temperature |
| ℃ |
Voltage |
| v |
Frequency |
| Hz |
Altitude of operation place |
| m |
Company Profile
Henan Hengtong Blower Co., Ltd. is a manufacturer of industry blowers with well-equipped testing equipment and strong technical force. Leading fan products are generally USES centrifugal fan, medium pressure centrifugal fan, high pressure centrifugal fan, high temperature fan, anticorrosive fan, flameproof fan, crops with ventilation fan and axial flow fan, etc., for 10000 tons per day of the dry process cement production lines supporting all kinds of centrifugal and axial flow fan, with an annual capacity of 2 million tons for the cement grinding station supporting all kinds of centrifugal and axial flow fan, for 300000 KWH power plant, the thermal power plant equipped with pulverized coal boiler and circulating fluidized bed boiler drum induced draft fan, for the iron and steel industry sintering machine equipped with sintering flue gas induced draft fan, dust removal fan, ring cooling fan for metallurgical industry of smithing cupola furnace, equipped with high pressure blower, for the new brick kiln waste heat recycling drying kiln equipped with special induced draft fan, for papermaking, textile, wood processing, food processing industry is equipped with all kinds of material conveying fan for various fan equipped with various types of noise, etc With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in steel factories, boiler factories, cement factories, paper mill factories and other industries.
