Home > Products > 5W Wall-mount Power Supply > SAA USB CHARGER ADPATER 5W Power adapter power Switching
SAA USB CHARGER ADPATER 5W Power adapter power Switching
- 60000 Piece / Pieces per Month
- Shenzhen or Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | FN-LINK | |
Model Number | 5W SAA PLUG | Output Power | Other, 5W | |
Output Type | Single | Input Voltage | Other, 100-240VAC | |
Output Voltage | 5V | Output Frequency | 47~63Hz | |
Output Current | 1A |
Product Description

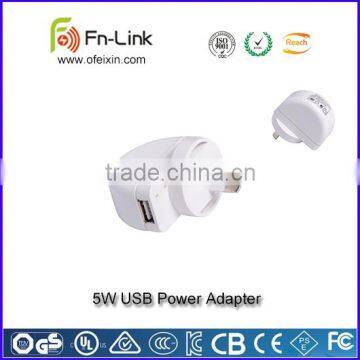

SAA USB CHARGER ADPATER
| |
|
Main Parameters
Input | Input Voltage | 100-240Vac 50/60Hz |
inrush current: | 100VAC full load,Max 20A 240VAC full load, Max 30A | |
leakage current: | Max 0.25mA | |
Output | Output Power: | 5W |
Output current: | 5Vdc ±5% | |
Output Voltage | 1A | |
Output DC Mode | USB Femal stocket orDC cord with plug | |
Test Standard | Ripple & Noise: | Vin 100Vac 60Hz Full load, 300mV p-p max. |
Power consumption: | Max 0.3W | |
Conversion efficiency: | >68.17% | |
OCP | Vin230Vac 50Hz, 110%~250% | |
Hi-pot test: | Primary.to.secondary:3000Vdc/10mA/60S for type test | |
Protection: | Short Circuit Protection Over-voltage protection Over current protection | |
Operating temperature | 0...+40° C | |
MTBF | 50000 hours MTBF & 0.5% annual field failure rate @ 25°C | |
Approvel Standard | Certification | CB,GS,CE,UK,SAA,UL/cUL,CCC,FCC,TUV,C-TICK,KC,PSE etc. |
Safty Standard | IEC/EN60950 IEC/EN61558 EN60065 GB4943 |
Mechanical SPEC
Products Display
Packing & Shipping
- The items normally will be shipped out within 3 working days after the payment confirmed.
- It will be shipped by DHL/TNT/UPS/FedEx/SF or other special way.Please contact with us and chose the best one.
- Any accidents and delays or other issues cased by forwarder,please forgive that we can not take responsibility.
The sample which needs your charge. 5.You should have to pay for all fees of shipping.
About US
Ofeixin TECHNOLOGY LIMITED is a professional manufacturer of adapter, switching power supply, chargers, consumer and so on LED constant current drive power of high-tech enterprises. The company has a number of products of invention patent, is the excellent supplier of many famous enterprise, the company's products through international certification, through the CCC certification including UL CE/GS PSE SAA KC, the company has a complete quality management system, and can provide customers with all kinds of power supply products custom-made service, all the starting point of our work is to provide customers with the best quality products and services, the company adhering to the "customer first, forge ahead" business philosophy, adhere to the principle of "customer first" for the general customers to provide quality services. Welcome to patronize!
