Home > Products > Protection equipment > 10-15kv Porcelain Dropout Fuse Cutout
10-15kv Porcelain Dropout Fuse Cutout
- ShangHai & DaLian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | TCI | |
| Model Number | 10-15kv Porcelain Dropout Fuse Cutout | Usage | High Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
Porcelain Dropout Fuse Cutout1.ISO9001
2.10-15kV fuse cutout available
3.High quality: quick acting in fault current

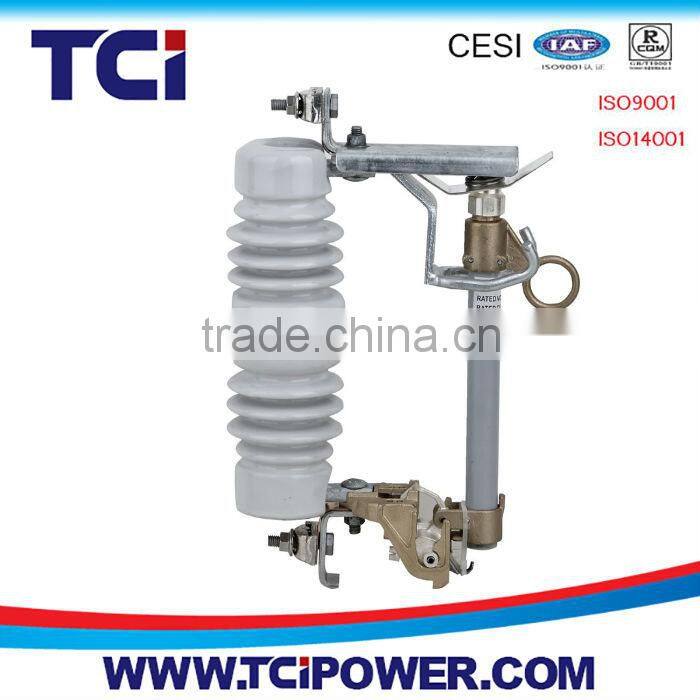

10-15kv Porcelain Dropout Fuse Cutout

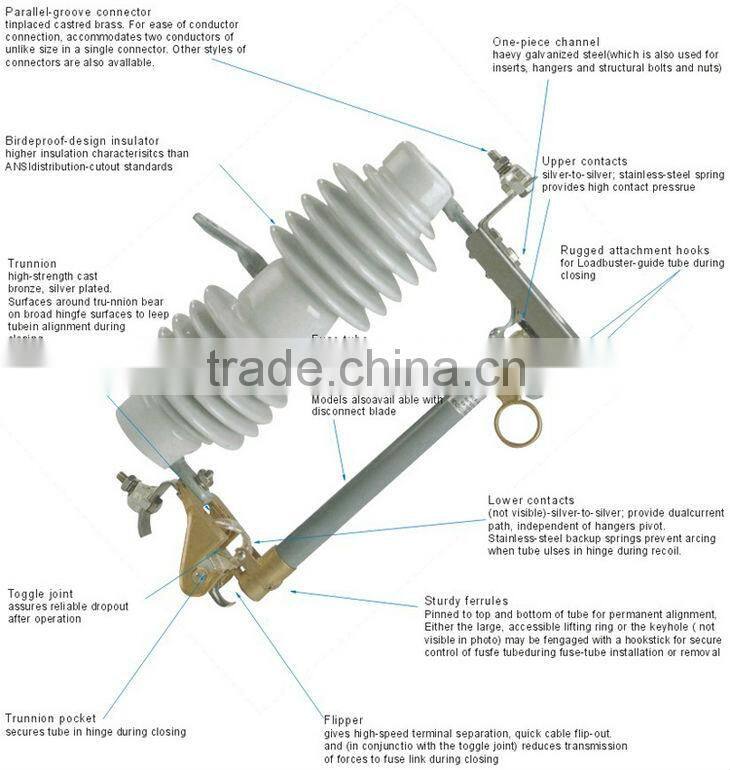

About the porcelain fuse cutout
Drop-out fuse cutout and load switching fuse cutout are of outdoor used high voltage protective device,Tobe connected with incomin-g feeder of distribution transformer or distribution lines,it mainly protect transformer or lines from short circuit and overload,and on/off loading,current,Drop-out fuse cutout is composed of insulate insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube,Fuse tube is composed of inside arcexting tube.Outer phenolic compound paper tube or epoxy glasstube,Load switching fuse cutout provides enfored elastic auxiliry contacts and arc-extinguishing exclosure switching on-off loading current.
At normally working via fuselink tightened the fuse tube is fixfed to form up of close position.In case system occure faults,fault current result result in fuse melt immediately and take piece electric are,which let arc-extinguishing tube being heated and fexplode a lot of gas,Th-os will produce high pressure and below of the are along with tube. After fuselink melt melt moving contact has no tightened strength again,mecganismis locked and fuse tube drop out, Cutout now is in open position,When it needs to switch off during cutout loading,operat-or shall via insulating operating bar pull the moving contact,atits beginning main contact and auxiliary static contactic contactedst-ill, Whiling pulling the auxiliary contact is separated between auxiliary contacts there occur electric arc and the arc will be lengthene-d in arc-extinguishing enclosure gap and meanwhile arc-exting explode gas to blow off the arc during current passing zero.

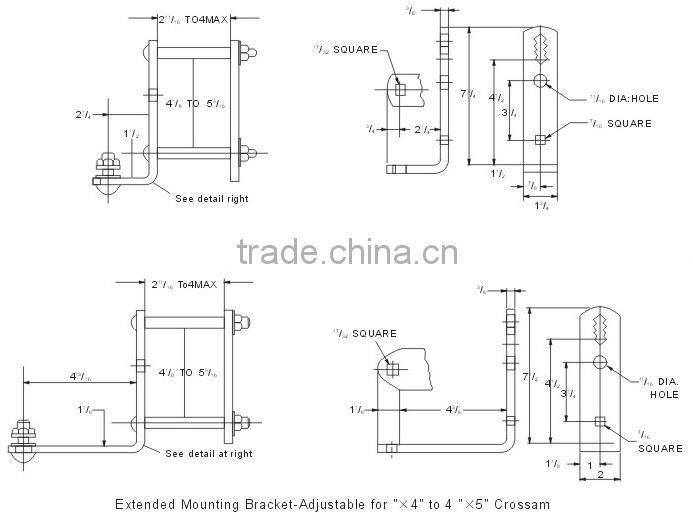

Technical drawings
Technical Specifications
Please contact us for more information.
We can design and manufacture specially on your request.
Click here to see more Fuse cutout~
Tips:
1. Since we (TCI) have many different models and types,providing exact model or detailed technical
specification in your inquiry will largely help us finding your a better solution within less time and
reducing your communication cost
2. We can design parameters.
Welcome to visit our website for more products~

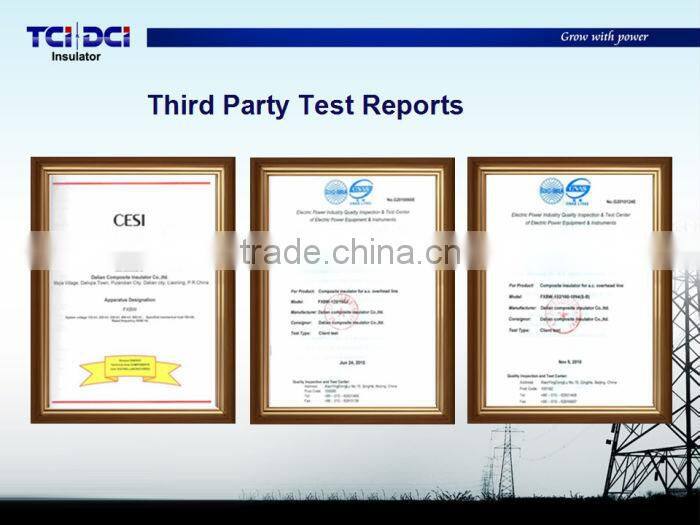

Certificates and test reports
Some of our customers
Welcome to our Factory
If you can cooperate with us,we will be honored
Our professional service before and after sale.
The reasonable price.
Any questions from you are welcome and will be replied in 24 hours.
Contact me: Kevin Lin
Email me:lin@
Dalian Tucheng International Corp.
Dalian Composite Insulator Corp.
Tel: +86-411-82789881/2
Fax: +86-411-82789913
http://tcipower.en.china.cn
