Heliformed Stay Grips,dead-end Clamps,guy Wires
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | TCI | |
| Model Number | NG7/4.0 | Type | Other, Bare, dead-end | |
| Application | Overhead | Conductor Material | Other, Galvanized Steel | |
| Conductor Type | Stranded | Insulation Material | Other |
Product Description
Specifications

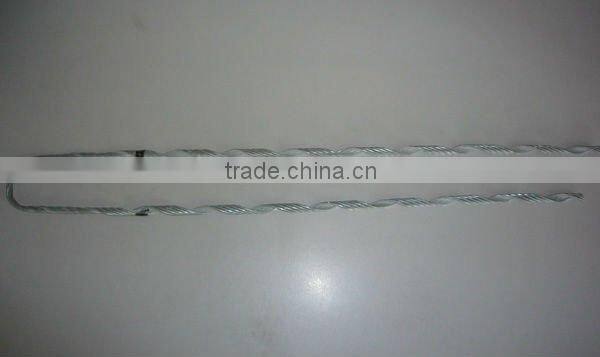

Galvanized Steel preformed guy gripSuitable for various dimension of wires
Right or left hand lay for your choice
Heliformed stay grips,dead-end clamps,guy wires
Guy wire type dead end clamp
The guy-wire dead end clamp for conductor can be applied to bear strain on overhead bared or insulated covered conductors in transmission & distribution lines. It's the substitutes of the traditional dead end clamps such as bolted type, compression type and wedge type.
Our company TCI (DALIAN TUCHENG INTERNATIONAL CO.,LTD) has been suppling this dead end grip for couple of years,both in direct phurchase from European user and electricity construction project/tender.
GALVANIZED STEEL HELIFORMED STAY WIRE OF DIAMETER RANGE (11.8-12.2) MM
SUITABLE FOR ATTACHING (7/4.0) MM
STEEL STRAND STAY WIRE TO STAY THIMBLES,
MINIMUM RATED HOLDING STRENGTH (9,500) KGF
RIGHT HAND LAY DIRECTION AND CROSS OVER STARTING AT (140) MM.

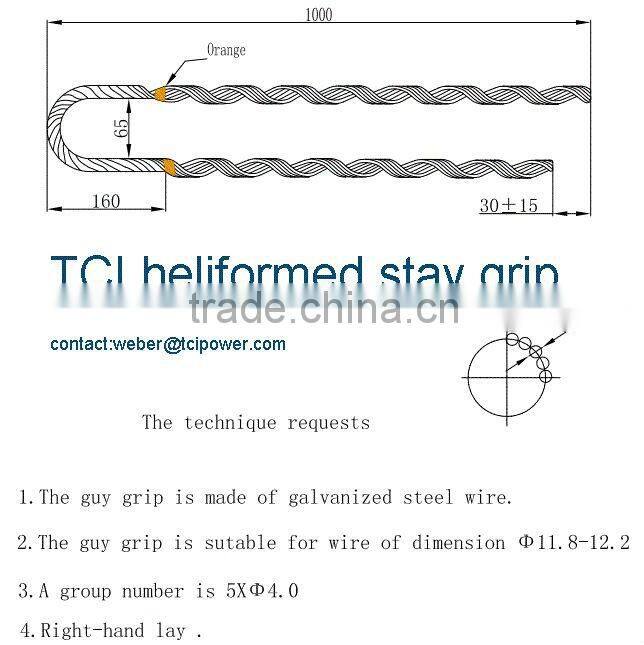

Below is the drawing of our heliformed stay grip(dead end grip,guy wire,strain grip,dead-end clamps)
TCI heliformed dead-end grip, dead end grips,stain grips,dead-end clamps
If you can cooperate with us,we will be honored
Our professional service before and after sale.
The reasonable price.
Any questions from you are welcome and will be replied in 24 hours.
Contact me: Kevin Lin
Email me:lin@
Dalian Tucheng International Corp.
Dalian Composite Insulator Corp.
Tel: +86-411-82789881/2
Fax: +86-411-82789913
http://tcipower.en.china.cn
