Home > Products > Scissor lift > 4m Lifting Height Mini Scissor Lift for Sale
4m Lifting Height Mini Scissor Lift for Sale
- Shenzhen Shanghai Guangzhou etc
- T/T
You May Like
-
Self-propelled Scissor Lift With Low Price
-
Best Selling Electric-hydraulic Scissor Lift,self-propelled Mobile Hydraulic Scissor Lift,four Wheels Mobile Scissor Lift Table
-
Industrial Hydraulic Scissor Lift Working Platforms,self-propelled Scissor Lift Manufacturers,move Hydraulic Scissor Mobile Lift
-
500kg Load Capacity Electric Scissor Lift Table
-
Made in China Hydraulic Auto Lift Scissor Car Lift Table
-
Hot Selling Self-propelled Small Platform Scissor Lift, High Quality Auto Scissor Lift, Cheap Scissor Lift Elevator
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM | |
| Model Number | GTJZ0408S | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 3 KW | |
| Rated Loading Capacity | 280 kg | Min. Lifting Height | 0m | |
| Max. Lifting Height | 4.6 m | Table Size | 1.64 m x 0.76 m x 1.1 m | |
| Overall Dimensions | 7.68*2.26*2.16m | Weight | 1248 kg | |
| Certification | CE/ ISO/ ADR/ ARAMCO | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
4M scissor lift table is the ideal small tight lift for maneuvering in flat indoor sites. It provides users reliable safeguard according with CE standard. Scissor lift is the electrical self-propelled scissor lift with low-noise and non-pollution. The spacious platform and great load capacity ensure widely usage.

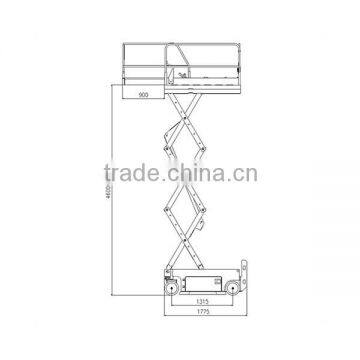

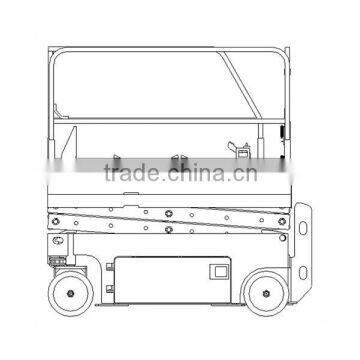

Technical parameters
Models | GTJZ0408S | |
Measurements | Metric | US |
Dimensions | ||
Platform height max. | 4.6 m | 15 ft |
Working height max. | 6.6 m | 21 ft |
Platform extended | 0.9 m | 3 ft |
Length-stowed | 1.775 m | 5 ft 8 in |
Width-stowed | 0.76 m | 2 ft 5 in |
Height-stowed | 2.08 m | 6 ft 8 in |
Ground Clearance | 0.07 m | 2 in |
Wheelbase | 1.315 m | 4 ft 3 in |
Platform size (L*W*H) | 1.64 m *0.76 m *1.1 m | 5 ft 4 in *2 ft 5 in *3 ft 6 in |
Productivity | ||
Max. platform occupancy | 2 | 2 |
Lift capacity | 280 kg | 617 lbs |
Lift capacity-extension deck | 120 kg | 265 lbs |
Drive speed-stowed | 0~4 km/h | 0~2.5 mph |
Drive speed-raised | 0~0.8 km/h | 0~0.5 mph |
Gradeability | 30% | 30% |
Turning radius-inside | 0 m | 0 ft |
Turning radius-outside | 1.48 m | 4 ft 9 in |
Raise/Lower speed | 18/ 30 s | 18/ 30 s |
Controls | Proportional | Proportional |
Drives | Dual front wheel | Dual front wheel |
Brakes | Dual rear wheel | Dual rear wheel |
Tire size(solid non-marking) | 305 mm * 115 mm | 12 in * 5 in |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | 24V DC (4*6V, 225Ah batteries) |
Hydraulic system capacity | 18 L | 4.76 gal |
Power | 3 KW | 3 KW |
Weight | ||
Indoor | 1210 kg | 2668 lbs |
Standards Compliance | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
The core configuration
Production Line
Product Inventory

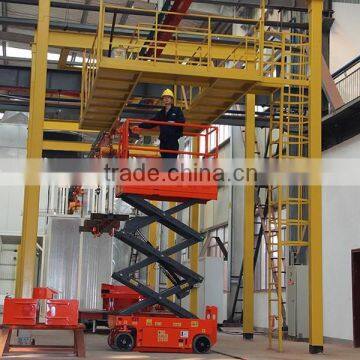

Application
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of scissor lift, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden
or others)
We'll give you an exact quotation based on your demand after confirming the above information.
