Specifications

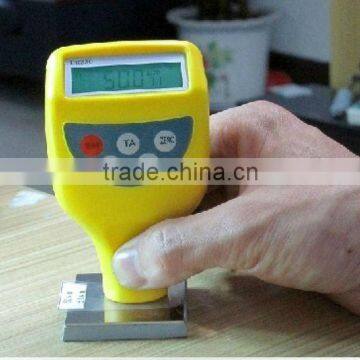

PT-DR210   One-piece coating thickness gauge

    DR210 Coating thickness gauge is a the magnetic eddy current portable cladding thickness gauge, it can quickly, no damage and precise the magnetic metal surface coating thickness measurement. Both used in laboratory, also used in engineering field. This instrument can be widely applied in manufacturing, metal processing, chemical industry, commodities inspection and testing field. Instrument operation simple, measured accurately, is material protection professional the necessary instruments. For example, copper and aluminum coated in the magnetic metal paint, powder coating, plastic, plastic film, etc.
 DR210Coating thickness gauge function:

a. Using the eddy current thickness measurement method, it is possible to measure the magnetic metal substrate coating layer thickness of;
b. The two methods can be used for calibration, and can be used to measure the head of basic calibration system error correction;
c. Operation process have hum tip;

d. The battery voltage instructions: low voltage hints

e.auto power-off
f. Measuring method: the eddy current

DR210Coating thickness gauge technical parameters:

1. Measurement range: 0 ~ 1250 um (standard range) other range can be made to order
2. Resolution:0.1/1um
3. Minimum surface: F: convex 5 mm/concave 5 mm
4. Minimum measurement area:10mm
5. The thin basement:0.3mm
6. Use environment: temperature: 0-40 °C humidity: 10-85% RH
7. Accuracy:±(1.5~3%h)OR ±2um
8. Metric/imperial: convertible
9. Power supply: 2 section number 5 cell
10. Instrument size:102mm*66mm*24mm
11. Weight:99g(with battery)
