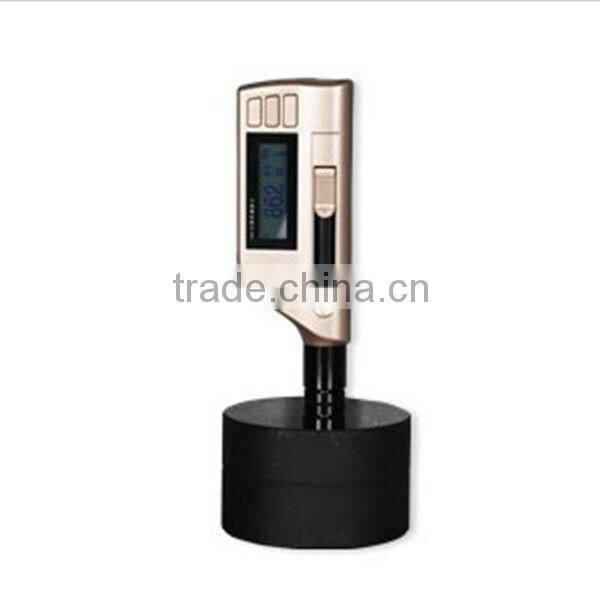

TIME5100 Hardness Tester,richter Hardness Tester

FOB Price

US$ 1 - 1,650 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	TIME
Model Number	5100

Features:

TH170 has discontinued,the replace model is TIME5100,the specifications is the same as the old model TH170.

Features:portable hardness tester

USB communication interface
Automatic identification of impact test direction
Memory of 270 average testing in 9 group files
Upper and lower limit setting
Automatically switch off
Backlight for convenient use in darkness
Battery capacity display
AAA1.5V battery
Integrated calibration function
TH170: integrated with D impact device for normal hardness testing
TH172: integrated with C impact device for hardness testing on thin, light and face-hardened workpieces
TH174: integrated with DL impact device for hardness testing of deep grooves and tooth surface
With software for data analysis

Technical Specification

	TH170	TH172	TH174
Impact device	D integrated	C integrated	DL integrated
Hardness scales	HLD, HB, HRC, HRB, HV, HS	HLC, HB,HRB,HRC, HV, HS	HLDL,HB, HRC, HRB, HV, HS
Accuracy	±6HLD(760 ±30HLD)	±12HLC	±12HLDL
Memory	270 average readings in 9 group files
Output	USB2.0 to computer
Average Surface Roughness of Work piece	1.6μ ( Ra)	0.4μ ( Ra)	1.6μ ( Ra) Diameter = 2.8mm
Max. Work piece Hardness	900HLD	960HLC	950HLDL
Min. radius of Work piece (convex/concave)	Rmin = 50mm (with support ring Rmin= 10mm)	Rmin = 11mm (with support rings)	Rmin = 10mm
Min. Work piece weight	2~5kg on stable support 0.05~2kg with compact coupling	0.5~1.5kg on stable support 0.02~0.5kg with compact coupling	2~5kg on stable support 0.05~2kg with compact coupling
Min. Work piece thickness coupled	5mm	1mm	5mm
Min. Thickness of hardened layers	0.8mm	0.2mm	0.8mm
Indentation depth	Impact Devices data	Impact Devices data	Impact devices data
Continuous working time	150(without backlight)	150(without backlight)	150(without backlight)
Power	AAA1.5V batteries(2PCS)	AAA1.5V batteries(2PCS)	AAA1.5V batteries(2PCS)
Operating temperature	0~40°C	0~40°C	0~40°C
Overall dimensions	155mm×55mm×25mm	160mm×60mm×25mm	215mm×60mm×25mm
Weight	166 g	180g	180g


	Standard delivery	Optional accessories
