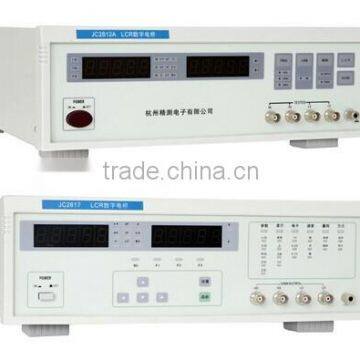

LCR meter JC2812

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port XI'AN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	JC
Model Number	2812

Product Description

1. Characteristic Function:
(1) Upgraded intermediate LCR meter
(2) Reading steadily and display high resolution, and monitor the test level
(3) Optional8 typical test frequency. The highest frequency is 100 KHz
(4) It can be accurate test for a long period time without calibration
(5) Selectable source output impendence: 30Ω, 100Ω
(6) Handler interface, RS-232 interface

2. JC2812/JC2812A/JC2812B/JC2817 technique index:

Model	JC2812	JC2812A	JC2812B	JC2817
Test Frequency	100Hz,120Hz,1kHz	100Hz,1kHz,10kHz	100Hz,120Hz,1k/10kHz	100Hz,120Hz,1k/10k/ 20k/40k/50kz/100kHz
Test Parameter	L,C,R,Q,D	L,C,R,Q,D	L/Q, C/D, R/Q, Z/D, Z/Q	L/Q, C/D, R/Q, Z/D, Z/Q
Test Level	0.3Vrms	0.3Vrms	0.1Vrms,0.3Vrms, 1.0Vrms	0.1Vrms,0.3Vrms, 1.0Vrms
Test Precision	L,C,R:0.25%,Q:0.25%, D:0.1%( intrinsic error)	L,C,R:0.2%,Q:0.2%,D:0.1%(intrinsic error)	L,C,R:0.05%,Q:0.05%,D:0.03%( ( intrinsic error)	L,C,R:0.05%,Q:0.05%,D:0.03%( (/intrinsic error)
Measuring Range	L:0.1μH~9999H	L:0.1μH~9999H	L:0.0001μH~99999H	L:0.0001μH~99999H
	C:0.1pF~19999μF	C:0.1pF~19999μF	C:0.001pF~99999μF	C:0.0001pF~99999μF
	R:0.1mΩ~99.99MΩ	R:0.1mΩ~99.99MΩ	R/Z:0.0001Ω~ 99999MΩ	R/Z:0.0001Ω~ 99999MΩ
	Q:0.01%~999%	Q:0.01%~999%	Q:0.01%~999%	Q:0.01%~999%
	D:0.01%~999%	D:0.01%~999%	D:0.01%~999%	D:0.01%~999%
			%:0.01%-99999%	%:0.01%-99999%
			handler inter face
Size	330(W) × 100(H)× 310(D) mm
Weight	5KG
Accessories	Test clamp JC28001 or JC26001, Test cable JC28002 or Kelvin test cable JC26004, Short calibration tinsel JC28003, power cable
Input Voltage	AC:220V±10%,50Hz±2Hz%
