Universal Auto Diagnostic Tool Scanner F3-W Tester Multi-language Autosnap Original Auto Scaner

1. Products with Main Unit, Diagnostic Connectors, Testing Cables and other accessories attached
2. Overall size with Extra protection box) for 1pcs: 54CM*53CM*20CM ;
Overall size with Extra protection box) for 2pcs: 54CM*53CM*20CM
3. Weight: 1pcs: 11kg
2pcs: 22KG

Specifications

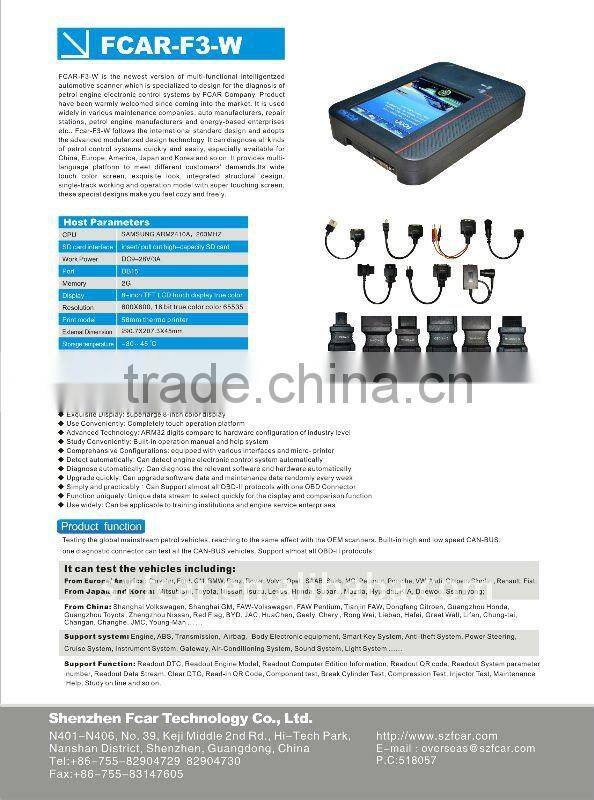

FCAR-F3-W Professional Auto Diagnostic Tool

FCAR-F3-W is the newest version of multi-functional intelligentized Auto diagnostic scanner tool which is specialized to design for the diagnosis of petrol engine electronic control systems by FCAR Company. Product has been warmly welcomed since coming into the market. It is used widely in various maintenance companies, auto manufacturers, repair stations, petrol engine manufacturers and energy-based enterprises etc.. Fcar-F3-W follows the international standard design and adopts the advanced modularized design technology. It can diagnose all kinds of petrol control systems quickly and easily, especially available for China, Europe, America, Japan and Korea and so on. It provides multi-language platform to meet different customers' demands. Its wide touch color screen, exquisite look, integrated structural design, single-track working and operation model with super touching screen, these special designs make you feel cozy and freely.

Host Parameters

CPU               SAMSUNG ARM2410A, 203MHZ

SD card interface    insert/ pull out high-capacity SD card

Power              DC12-24V/3A

Port                DB15

Display             8-inch TFT   LCD touch display true color

Resolution           640X480, 16 bit true color  color 65535

Print model:          58mm thermo printer

External Dimension          290.7X207.3X45mm

Storage temperature    -30 ~ 45 °C

Operating Temperature  -10 ~ 45 °C

Humidity              <90 °C

Product function

Testing the global mainstream petrol vehicles, reaching to the same effect with the OEM scanners. Built-in high and low speed CAN-BUS, one diagnostic connector can test all the CAN-BUS vehicles. Support almost all OBD-II protocols.

It can test the vehicles including:

From Europe/ America: Chrysler, Ford, GM, BMW, Benz, Rover, Volvo, Opel , SAAB, Saab, MG, Peugeot, Porsche, VW, Audi, Citroen, Skoda, , Renault, Fiat;

From Japan and Korea: Mitsubishi, Toyota, Nissan, Isuzu, Lexus, Honda, Subaru, Mazda, Hyundai, KIA, Daewoo, Ssangyong;

From China: Shanghai Volkswagen, Shanghai GM, FAW-Volkswagen, FAW Pentium, Tianjin FAW, Dongfeng Citroen, Guangzhou Honda, Guangzhou Toyota, Zhengzhou Nissan, Red Flag, BYD, JAC, HuaChen, Geely, Chery , Rong Wei, Liebao, Hafei, Great Wall, Lifan, Chung-tai, Changan, Changhe, JMC, Young-Man ... ...

Support system: Engine, ABS, Transmission, Gasbag, Body Electronic equipment, Smart Key System, Anti-theft System, Power Steering, Cruise System, Instrument System, Gateway, Air-Conditioning System, Sound System, Light System ……

Support Function: Readout DTC, Readout Engine Model, Readout Computer Edition Information, Readout QR code, Readout System parameter number, Readout Data Stream, Clear DTC, Read-in QR Code, Component test, Break Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on.
