Double Head Ink Cup Pad Printing Machine LC-PM1-200/2T

Product name

Model No

Certificate

CE, ISO-9001-2000

Brand Name

Description

Advantage

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.

Parameter

1. Model No: LC-PM1-200/2T
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*300 mm
5. Max Printing area: 90*160mm
6. Sealed ink cup diameter: 90 mm
7. Max printing station: 2PCS
8. Max printing speed: 2000PCS/H
9. Wattage: 220V/ 50Hz 110V/60Hz
10. Air pressure: 0.4-0.6Mpa
11. Machine size: 860x460x1400mm
12. Machine weight: 150KG

Usage

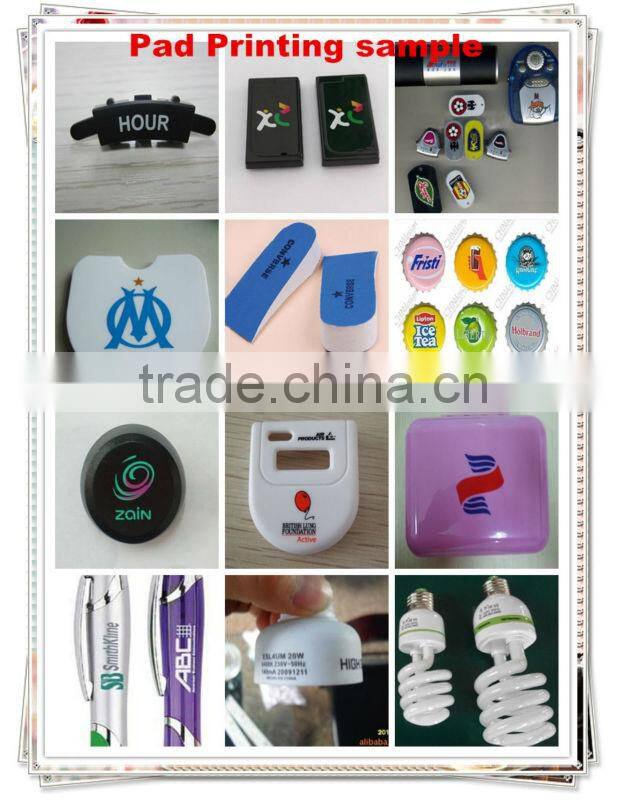

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

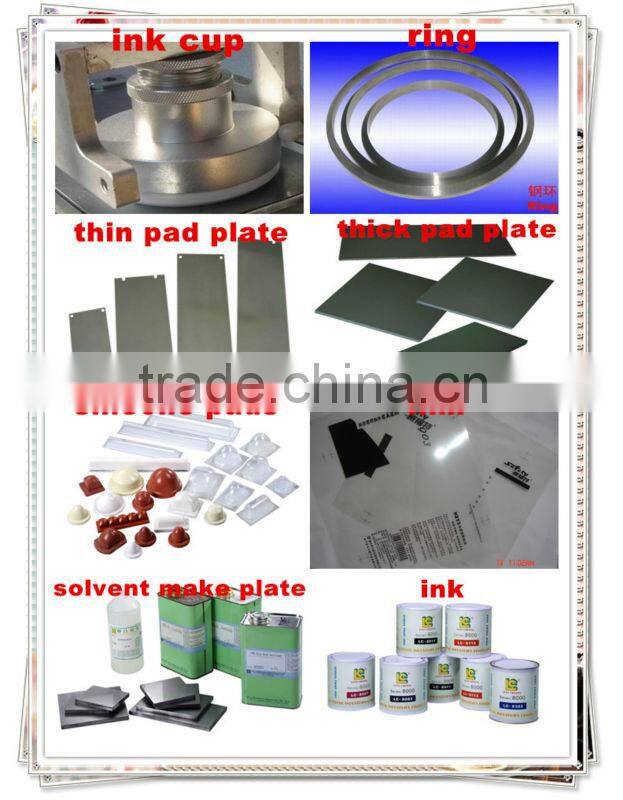

Free fittings

1Set/Sets

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
