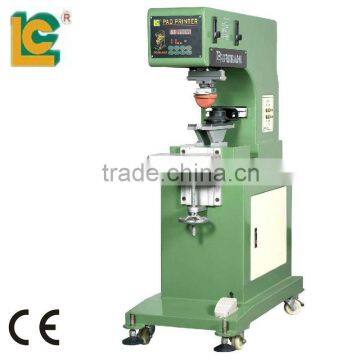

Large Size Paper Egg Pad Printing Machinery LC-PM1-250super Primex Pad Printing

Product name

Large Size paper egg containers Pad Printing Machine LC-PM1-250

Model No

LC-PM1-250

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

LC-PM1-250  300 Single color pad printer it is standard model in pad printing line. Widely use for  Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware  Parts.

Advantage

1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable

Parameter

1. Model NO: LC-PM1-250
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 150*250mm
5. Printing area; 130*230mm
6. Jigs: 1
7. Max printing speed: 1200PCS/H
8. Wattage: 220V/ 50HZ:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH): 830x530x1400mm
11. Machine weight: 170kg

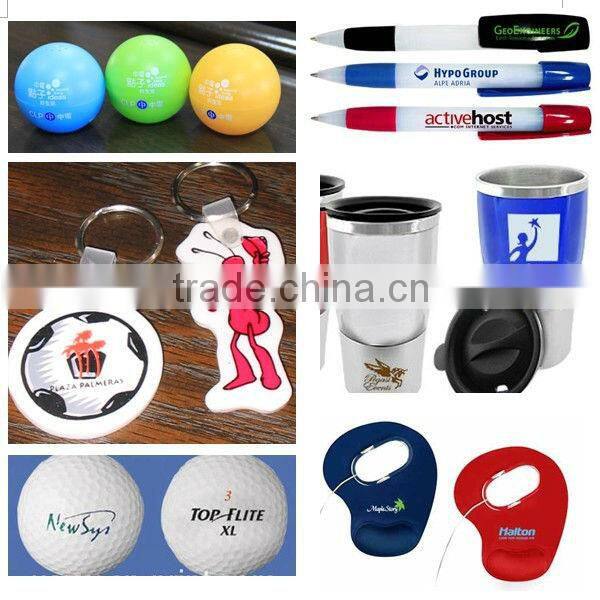

Usage

pad printing machine  to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Free fittings

1. One pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
