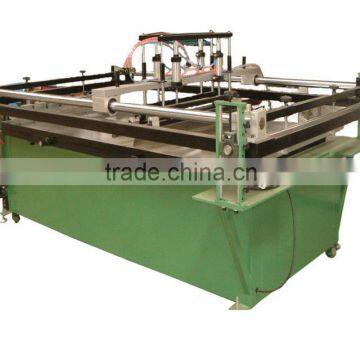

Manual Operate Banner Screen Printer (TS-15300) screen printing equipment

  Manual Operate Banner Screen Printer

Product usage:
This machine is suitable for printing large scale such as large-size outdoor glass, LED ,signboard , nylon cloth, metal, leather and plastics etc.
It also supports the operation of precise printing such as paster, ceramic stained paper, membrane button, large-size poster, auto glass, instrument, architectural plaque, nameplate and billboard plate etc.

Features:
1. Easy and reliable in operation, precise in orientation, even in printing. Imported linear track, featured with stability, high accuracy etc.
2. Electromagnetic scavenging air valve to facilitate the adsorptive power drastically and deflation equally and fast.
3. Elegant appearance. Suitable for the thick printing items in big amplitude modulation; easy scrapping, loading and unloading; adjustable printing angle.

Parameter
1 MODEL-- LC-11530
2. Max Printing Area--1400*2700 (mm)
3. Silk screen frame area--1800*3200 (mm)
4. Work table area--1500*3000 (mm)
5. Print on thickness--0~15(mm)
6. Printing speed--500-700pcs/h
7. Machine shape L*W*H---3100*1900*1000(mm)
8. package size--3120*1920*1020(mm)
9. net weight--2200kg
10. power-- 220V
11. Packing—wooden
12. Free match-- English operating instruction a suit   tool a squeegee
