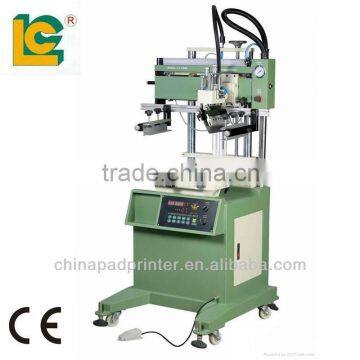

(LC-400P)Plane Vacuum Screen Printing Machine

Product name

Plane vacuum screen printing machine

Model No

LC-400P

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

LC-400P Plane screen printer with vacuum. This machine is high quality useful printing on PVC, paper, package bag, silicone key press, electronic procducts. Compute keypress.

Advantage

1. Microprocessor controls, high automation and easy operation.
2.4-digit auto counter built-in.
3. Automatic ink scraping, ink withdrawing and printing scraper lifting.
4. Printing stroke and speed is adjustable to meet different needs.
5. Automatic squeegee balance-keeping ensures equal printing pressure.
6. Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
7. High precision printing and easy adjustment.
8. With the function of vacuum sorption in

Parameter

1. Model number---LC-400P
2. Product thickness----60mm
3. Max. Printing area----250*400 mm
4. Max work table size----300*500mm
5. Printing Speed---1000P/H
6. Machine Weight----192kg
7. Pressure----0.6Mpa
8. Voltage power----380V/ 50/60Hz 110V/50Hz

Usage

It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on, and suitable for small printing area of plane, cambered and irregular surface,

such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,

electronic appliance,crafts etc.

Free fittings

1.  two pcs steel plate
2.   two pcs rubber pad
3.   a suit   tool
4.   English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
