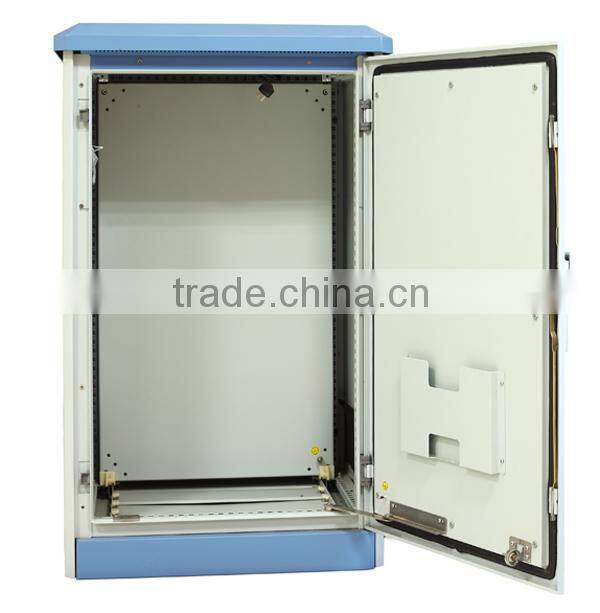

outdoor cabinet

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Port NINGBO

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	LE OR OEM
Model Number	DA	Protection Level	IP65
Type	Network Cabinet	External Size	Customize as required

Product Description

Feature

* Strong and stable framework of cabinet, which has the mounting holes

* The side panel and rear panel are the double-panel designed,
the panels are fixed by the bolt from the inner.

* Between the inside and outside side panel has the inter space
   (spacing 25mm),which provides the channel to ventilate and support the
   enclosure internal heat exchange,and also can reduce the influence of
   the sunlight illumination

* The roof panel has the awning all around stretches out 25mm and
high 75mm to keep from the rain, the awning have the integrity well
ventilated, which guarantees the air exchange.

* Luxury lock with three points bolted on the front door, side panels and
rear panels are fixed by screws

*The bottom can sealed with 3 sectional panels or one sectional panel

* The enclosure is the 19" structure, also can install the mounting panel

*The top loaded with 6fans to ventilate, two sides have the blind holes to output heat

Specification

Product Name	outdoor cabinet
Product Model	DA
Form Factor	19" rackmount
Material	SPCC Cold Rolled Steel
Standard	Comply with EN60529/10.91,IEC60529 and GB4208-93 standard
Surface Finish	Degreasing, Pickling, Phosphating, Powder coated
Assembly Required	Ready Assembled For Immediate Use
Compatibility	transmission equipment
	optical / digital / audio distribution
	data equipment
	access equipment
	power supplies
	monitoring equipment.
