Home > Products > stainless steel wire mesh > Stainless Steel crimped Wire Mesh

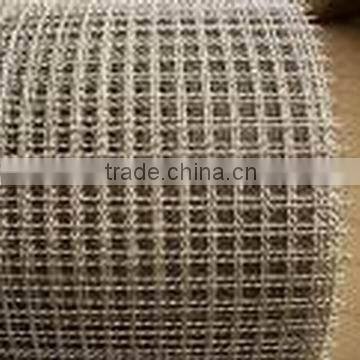

Stainless Steel crimped Wire Mesh
- 25000 Square Meter / Square Meters per Month
- tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | yujun | |
| Usage | Air Filter | Type | Other, stainless steel wire mesh | |
| Material | Metal | Hole Shape | Square |
Product Description
Specifications
stainless steel crimped wire meshMaterial:304,304L,316,316L,410,420,430,201
wire dia:0.025 to 1.8mm
Standard width:1m to 48"
Stainless steel crimped wire mesh :Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grades unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
Our stainless steel wire mesh products are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customers specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.
Stainless Steel Woven Wire Mesh | ||
Mesh/Inch | Wire Gauge SWG | Aperture mm |
40meshx40mesh | 36 | 0.44 |
50meshx50mesh | 38 | 0.36 |
60meshx60mesh | 40 | 0.30 |
80meshx80mesh | 42 | 0.21 |
100meshx100mesh | 44 | 0.17 |
120meshx120mesh | 44 | 0.13 |
150meshx150mesh | 46 | 0.108 |
160meshx160mesh | 46 | 0.097 |
180meshx180mesh | 47 | 0.09 |
200meshx200mesh | 47 | 0.077 |
250meshx250mesh | 48 | 0.061 |
270meshx270mesh | 48 | 0.058 |
300meshx300mesh | 49 | 0.054 |
325meshx325mesh | 49 | 0.051 |
350meshx350mesh | 49 | 0.042 |
400meshx400mesh | 50 | 0.0385 |
Width: 0.6m-8.5m | ||
