plastic blow molding machine

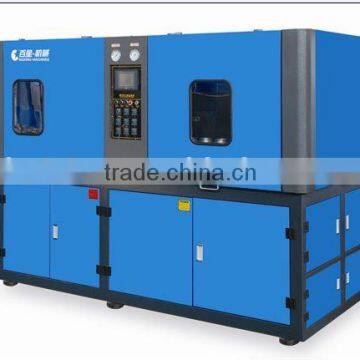

BX series,newly developed by our company, is a two-step automatic PET bottle blow moulding machine,which can be operated by hands or conveyor to feed the preforms. BX series is of one cavity and the maximum volume of the bottles is 0.6L,1.5L,2.5L,5L.It can blow various bottles in shapes: carbonated,mineral,pesticide,cosmetics,wide-mouth and other packing containers which is made of PET,PP etc.
Main parts:
a).PLC colour display: BOTHFIT(Joint,Taiwan)
b).Cylinder: MOHE(Joint,Japan)

c).Blowing Valve: PARKER(Switzerland)
d).Acting Valve : AIRTAC(Taiwan)
e).Photoelectric Switch: Korea.
f).Silencer:SMC(Japan)

g).Fan:Germany

h).Other electric parts are all world-famous brand.

Features:
A.Stable performance with advanced PLC.
B.Conveying preforms by hands.
C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H.Strong clamping force with high pressure and double crank links to lock the mold.
I.Two ways of operating: automatic and manual.
J.Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L.Contamination is avoided for the bottle body.
M.Ideal effect of the chilling with the chilling system.
N.Easy installation and starting
O.Low rejection rate: less than 0.2 percent.
Technical parameter:

TYPE	ITEM	BX-600	BX-1500	BX-2500	BX-5000
CONTAINER	Number of cavity	1	1	1	1
	Theoretical output	1200-1500pcs/hr	1000-1300 pcs/hr	800-1200 pcs/hr	500-700 pcs/hr
	ntainer volume	0.6L	1.5L	2.5L	5L
	Max.neck diameter	65mm	80mm	90mm	120mm
	ntainer diameter	80mm	105mm	115mm	200mm
	ntainer height	260mm	330mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	12pcs(1500w/pcs)	16 pcs(1500w/pcs)	16 pcs(1500w/pcs)	18pcs
	Max.heating power	18kw	24kw	24kw	27kw
	Installation power	18.5kw	24.5kw	24.5kw	28kw
	Actual power consumption	8-12kw	12-14kw	12-14kw	14-18kw
AIR SYSTEM	Operatating pressure	7kg/c	7kg/c	7kg/c	7kg/c
	Low pressure consuming	800Ltr/min	900 Ltr/min	900 Ltr/min	1200 Ltr/min
	Blowing pressure	≤40kg/c	≤40kg/c	≤40kg/c	≤40kg/c
	High pressure consuming	1200-1600Ltr/min	1200-1600Ltr/min	1200-1600Ltr/min	2000-2500Ltr/min
WATER CHILLER	Operating pressure	5-6 kg/c	5-6 kg/c	5-6 kg/c	5-6 kg/c
	Temperature	10	10	10	10
	Consuming	3600kcal/hr	3600kcal/hr	3600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	20Ltr/min	20Ltr/min	30Ltr/min
MACHINE	Machine dimension	2.2×1.5×1.8(m)	2.4×1.6×1.8(m)	2.5×1.7×1.8(m)	2.2×1.8×1.7(m)
	Machine weight	1.3T	1.5T	1.7T	2.8T
