Glass Sucker Machine Supplier
- shanghai
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Herolift | |
| Model Number | GLB800-8-B-M |
Product Description
Specifications

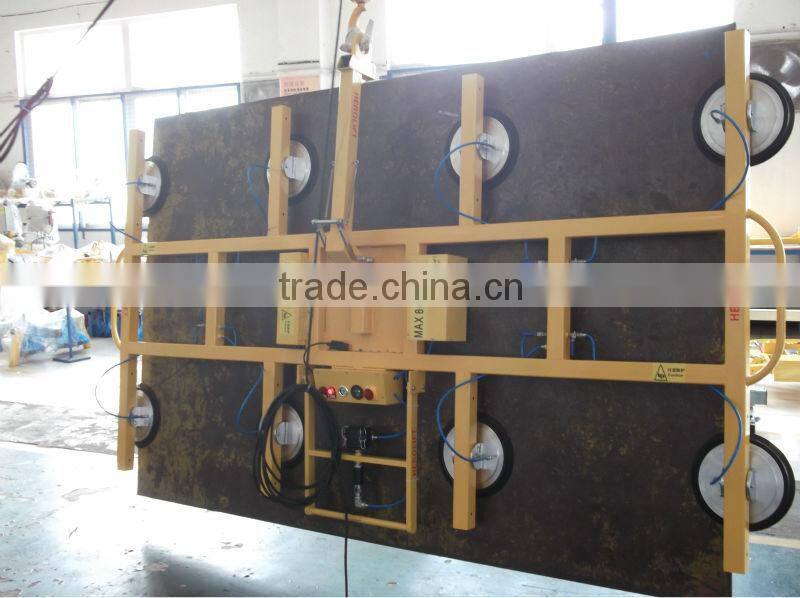

Glass sucker machine supplier1. Max carrying capacity 800kg
2. For glass curtain wall installation
3. For 12V battery supply
Glass lifting equipment /Vacuum lifting glass handling/ aluminium windows handles / Glass sucker machine supplier
Detail product Description:
1. Vacuum glass lifter device up to 800kg.
2. For Glass Curtain Wall, Glass Loading/Unloading,Outdoor Mounting.
Funtion:
1. Safe handling of workpieces without damaging them due to simple operation
2. Intergrated power failure monitor
3. Acoustic warning
4. Intergrated safety tank
5. Imported Pump&valve
6. Efficient, safe, quick, easy
7. Safety Tank&pressure switch warning
8. Adjustable suction cups,can be turned foo individually
9. Quick and ergonomic handling of workpieces made of glass in a wide variety of sizes
10. Simple assembly due to its compact and flat design
11. Operation without being connected to the electrical power supply
The Glass lifter consists of the basic unit that can be combined with different suction systems. The suction units are connected to the vacuum pump by hoses via a valve control. Filter systems product the pumps against impurities.
The glass lifter can be combined and operated with many different carrier facilities,such as crane, wheel loaders, fork lifts.
Load(kg) | Type | Size of suction pads(mm) | Swiveling function | Turning | Control mode | Vacuum pump | Power | Dead load(kg) | Overall of machine (mm) |
200 | GLB200-4-B-M | 230 | 360° | none | manual | 12V | 12V | 60 | 1200*1100*300 |
400 | GLB400-4-B-M | 300 | 360° | 90° | manual | 12V | 12V | 80 | 1200*1100*300 |
600 | GLB600-6-B-M | 300 | 360° | 90° | manual | 12V | 12V | 90 | 1300*1000*300 |
800 | GLB800-8-B-M | 300 | 360° | 90° | manual | 12V | 12V | 100 | 2800*1200*300 |
1000 | GLB1000-10-B-M | 360 | 360° | 90° | manual | 12V | 12V | 120 | 3000*1200*300 |
