Home > Products > Huge borad lifter > 2016 New Vacuum Lifter /vacuum Lift Horizontal
2016 New Vacuum Lifter /vacuum Lift Horizontal
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | HeroLift | |
| Model Number | HL5000-12-T | Power(W) | 0.55kw | |
| Certification | CE ISO9001 | Warranty | One Year |
Product Description

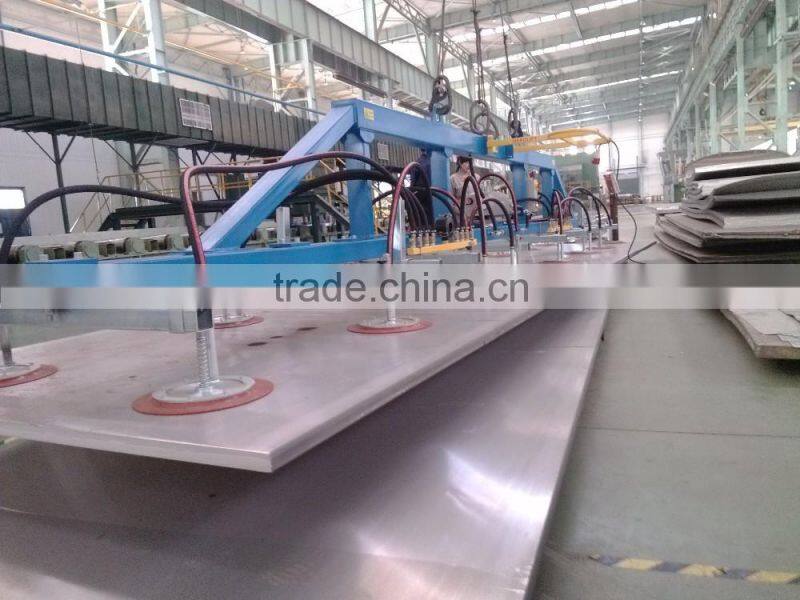

2016 new Vacuum lifter /vacuum lift horizontal/vacuum suction equipment
Function:
1. Max.carrying capacity 5000kg
2. Acoustic warning
3. Intergrated safety tank
4. Imported Pump&Valve
5. Efficient,safe,quick, easy
6. safety Tank&Pressure swicth warning
7. Adjustable suction cups, can be turned off individually.
Appliaction:
Steel plate handling, plate Un/Loading, Aluminum Handing, Alloy Plate Handling
| Load kg | Type | Size of suction pad | suction pad No. | Vacuum control | Vacuum pump | Power Voltage/FR/PH | Own weight kg | Machine size mm L*W*H |
| 2500 | HL2500-10 | 360 | 10 | manual/electrical | VT4.16 | 380 50/60 3 | 500 | 4000*1000*1200 |
| 3000 | HL3000-3 | 450*850 | 3 | manual/electrical | VT4.16 | 380 50/60 3 | 600 | 4000*1000*1200 |
| 4000 | HL4000-4 | 450*850 | 4 | manual/electrical | VT4.16 | 380 50/60 3 | 780 | 4500*1000*1200 |
| 4500 | HL4500-18 | 360 | 18 | manual/electrical | VT4.25 | 380 50/60 3 | 1020 | 5000*1000*1200 |
| 5000 | HL5000-12-T | 450 | 5 | manual/electrical | VT4.25 | 380 50/60 3 | 140 | 10000*1000*1200 |
| 6000 | HL6000-6 | 450*850 | 6 | manual/electrical | VT4.40 | 380 50/60 3 | 180 | 6000*1200*1200 |
| 8000 | HL8000-8 | 450*850 | 8 | manual/electrical | RT0063 | 380 50/60 3 | 250 | 9000*1200*1200 |
| 10000 | HL10000-10 | 450*850 | 10 | manual/electrical | R0100 | 380 50/60 3 | 250 | 12000*1200*1200 |
| 15000 | HL15000-10 | 650*850 | 10 | manual/electrical | R0160 | 380 50/60 3 | 250 | 12000*1200*1200 |
