Waterproof Rubber Water Stop Strip Barrier

FOB Price

US$ 1 - 20 / Meter

10 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Sinta
Model Number	ST-R001

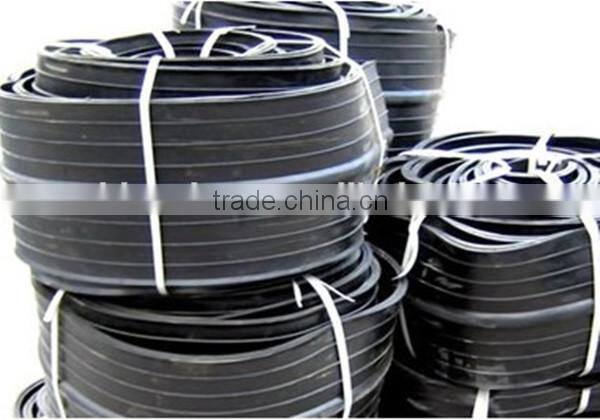

waterproof rubber water stop strip barrier

Application

Rubber water stop mainly used in Concrete cast-in-situ located within a construction joint and deformation joint with concrete structure

is one of the basic engineering,such as underground installation,Tunnels culvert,The water

conveyance aqueduct,Dam, liquid structures and so on.

Advantage:

1.Material:Rubber

2.Applicable for various joints during construction and use

3.Provide a wide range of product specifications

4.According to the design and construction requirements

5.Reasonable price

The main characteristic is that the Waterproof inside is made of Special rubber water

swelling.and when the rubber water stop meet the water and then swelling,the tightness of

rubber water stop and the structures will be increased,the effect of waterproof will

be better.

Physical property

Items				index
				B	S	J
1. Hardness ( Shore A )				60±5	60±5	60±5
2.Tensile strength ,MPa ≥				15	12	10
3.Elongation at break , % ≥				380	380	300
4.Compression set %		70ºC×24h,% ≤		35	35	35
		23ºC×168h,% ≤		20	20	20
5.Tear strength,KN/m ≥				30	25	25
6.Brittleness temperature,°C ≤				-45	-40	-40
7.Air aging	70ºC×168h		Hardness ( Shore A ) ≤	8	8	--
			Tensile strength,MPa ≥	12	10
			Elongation at break , % ≥	300	300
	100ºC×168h		Hardness ( Shore A ) ≤	--	--	8
			Tensile strength, MPa ≥			9
			Elongation at break , % ≥			250
8. Resistance ozone ageing 50pphm: 20%, 48h				2grade	2 grade	0 grade
9. Adhesion of rubber to metal				With contact section in elastomer
